Review of the AGM H5 Pro Rugged Smartphone

The AGM H5 Pro Rugged Smartphone

The AGM H5 Pro Rugged Smartphone

I’ve recently reviewed a pair of expensive smartphones that perform extraordinarily well in their respective niches.

Tradespeople and contractors will appreciate the rugged AGM Glory G1S, which also boasts the most complete set of cameras I have ever encountered.

The second of these smartphones is powered by Qualcomm’s new Snapdragon 8+ chipset and is fitted with 18GB of RAM. This is the type of phone you’ll find on the Christmas list of every hardcore gamer.

Today, I am closely examining a more moderately priced smartphone that combines ruggedness with the ability to compete in the gaming world.



The AGM H5 Pro weighs in at 12.7 ounces. This smartphone is 6.8 inches tall and 3.27 inches wide. Its nominal thickness measures 0.67 inches, increasing to 0.92 inches due to its protruding speaker grill. The phone is composed of black scratch-resistant plastic with a nicely textured back surface and reinforced corners. This device boasts a 6.517-inch HD+ touchscreen delivering a resolution of 720*1600 pixels.

This rugged smartphone meets MIL-STD-810H and IP68/IP69K standards, ensuring it can endure drops of up to 4.7 feet and survive underwater at depths of 4.7 feet.

The H5 Pro is equipped with a MediaTek MT6769V/CZ Helio G85 Mobile Processor. This chipset includes an octa-core CPU featuring two Arm Cortex-A75 CPUs operating up to 2GHz, and six Cortex-A55 processors running at speeds up to 1.8GHz. Its Arm Mali-G52 GPU peaks at 1GHz, providing good performance for gamers. This Android 12 phone is fitted with 8GB of RAM, 128GB of ROM, and powered by a 7000 mAh battery.

While the H5 Pro features Bluetooth, GPS, NFC, and a fingerprint sensor, its ruggedness and ability to snap photographs under a wide range of conditions represent its greatest strengths. This device is fitted with a 48MP primary camera, a 20MP selfie camera, a 2MP macro camera, and a 20MP night vision camera. It is also equipped with an extraordinarily loud internal speaker.

AC adapter

AC adapter

Charing dock

Charing dock


  • Manufacturer: AGM
  • Model: H5 Pro
  • Weight: 361 grams (12.7 ounces)
  • Dimensions: 173 x 83 x 23 millimeters (6.8 x 3.27 x 0.92 inches)
  • Display: 6.517-inch touchscreen
  • Brightness: 500cd/m2 type
  • Display resolution: HD+ 720*1600
  • Chipset: MediaTek MT6769V/CZ Helio G85
  • CPU: Octa-core CPU up to 2.0 GHz
  • GPU: Arm Mali-G52
  • RAM: 8GB
  • ROM: 128GB, expandable to 512GB
  • Sensors: Proximity, light, accelerometer, compass, gyroscope, fingerprint
  • Operating system: Android 12
  • Bluetooth: BT 5.0
  • Headphone output: 3.5mm
  • SIM slot: 1 nano SIM + 1 Micro SD card or 2 nano SIM
  • Wi-Fi: Wi-Fi 802.11a/b/g/n/ac 2.4G/5G
  • GPS: Support
  • Battery: 7000 mAh Lithium-Polymer, nonremovable
  • Cellular Technology: 4G
  • Bands: GSM: B2, B3, B5, B8
  • CDMA: BC0
  • WCDMA: B1, B2, B4, B5, B8
  • LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B17, B18, B19, B20, B25, B26, B28AB, B66
  • LTE-TDD: B38, B39, B40, B41
  • Rear cameras: 48MP primary, 2MP macro, and 20MP night vision with infrared LED
  • Front camera: 20MP selfie
  • Features: Fingerprint sensor, NFC technology, and customizable side key
  • Waterproof: IP68/ IP69K
  • Drop-proof: MIL-STD-810H
  • 15-Watt fast charge support: Yes
  • 10-Watt dock support: Yes. Dock is included
  • Internal Speaker: 3.5W 33mm mono speaker

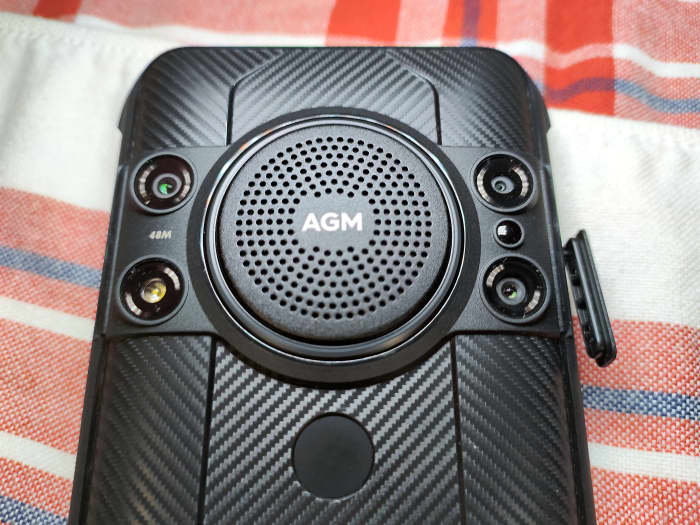

Speaker, fingerprint sensor, infrared LED, 48MP lens, 2MP macro lens, LED light, and 20MP infrared lens

Speaker, fingerprint sensor, infrared LED, 48MP lens, 2MP macro lens, LED light, and 20MP infrared lens

Rugged Design

This phone meets the MIL-STD-810H resistance standard and can survive a 1.5-meter drop. It is rated IP68/IP69K and can survive for up to 30 minutes while immersed in 1.5-meters of water. The H5 Pro blocks 99% of dust, cement, lime, and industrial powders.

Its outer case is composed of double injection plastic, and the surrounding edge of the touchscreen is raised 0.3mm.

Rugged smartphones, which are intended to be used in the field, are bulkier than their more delicate counterparts.


Processing power is provided by a MediaTek MT6769V/CZ Helio G85, which includes an octa-core CPU running at up to 2.0 GHz and an Arm Mali-G52 GPU. This processor is aided by the smartphone’s 8GB RAM and 128GB ROM.

While not as powerful as the Snapdragon 8+ chipset fitted to the superphone I reviewed earlier, the Media Tek G85 is an excellent choice for a gaming phone in the mid-priced category.

The Display

The 5-point multi-touch screen is 6.517 inches in size and boasts a resolution of HD+ 720*1600.

I streamed A League of Their Own on Amazon Prime. This series makes excellent use of color, and the H5 Pro displayed it crisply and correctly.

Transferring data and applications from old phone to new

Transferring data and applications from old phone to new


A 33mm mono speaker is fitted to the back of this phone. Its metal grille protrudes about 6mm, providing an excellent viewing angle for the display.

This speaker’s 3.5W output rivals that of several projectors I have recently reviewed. When I streamed a movie on Netflix, the sound was pleasing, and the volume could be raised loud enough to be heard clearly within the adjoining room. The treble is fine, and this speaker provides good bass, but I did find it reproduced the frequency band a little unevenly. I usually connect to headphones or use an external Bluetooth speaker when playing music.

While working at a job site, surrounded by clanging pipes, power saws, and noisy workmates, this speaker is loud enough to ensure I can conduct a telephone call successfully. Of course, when the fellow operating the jackhammer returns from his smoke break, all bets are off!

Primary Camera

The AGM H5 Pro is equipped with four different cameras, allowing photographs to be taken under various conditions. The 48MP primary camera is matched to a Samsung S5KGM2SP sensor with an f/1.79 aperture. Images recorded by this camera are crisp, colorful, and well-focused.

48MP primary camera.  The town of Windsor is capably defended

48MP primary camera. The town of Windsor is capably defended

Selfie Camera

This 20MP camera focuses quickly and takes excellent photographs. It is fitted with a Sony IMX376 sensor.

20MP selfie camera

20MP selfie camera

Selfie camera

Selfie camera

Macro Camera

This 2MP camera features a Gcoreinc GC02M2 sensor and is intended for snapping close-ups.

2MP macro camera

2MP macro camera

Macro camera

Macro camera

Infrared Night Vision Camera

A Sony IMX350 sensor and an infrared LED are matched to this 20MP camera. It provides a decent grayscale image within the range of its LED illumination, even when it is entirely dark.

Overall Impression

If you are a tradesman who spends your time at the job site or you enjoy hunting and fishing, this is the phone you’d want to carry. While the H5 Pro is a little thicker and heavier than its competitors, it is tough enough to handle being ducked in water, covered in dust, or dropped to the floor.

This phone is equipped with an excellent mid-range processor and 8GB of RAM, providing the ability to handle the sophisticated games available today. Also included is a fingerprint sensor and features such as Bluetooth, GPS, and NFC.

Its suite of cameras consists of a 48MP primary, selfie, macro, and one that can take photographs in the dead of night. A generously sized 7000mAh battery provides power. The AGM H5 Pro is recommended.

This content reflects the personal opinions of the author. It is accurate and true to the best of the author’s knowledge and should not be substituted for impartial fact or advice in legal, political, or personal matters.

© 2022 Walter Shillington
