How To Replace The Backup Battery In Your AlphaSmart Neo2

Author:

AlphaSmart Neo2 Backup Battery Replacement

Replacing the backup battery in your AlphaSmart 3000, Neo or Neo2 can be quick, easy and avoids loss of your hard work when the regular batteries die or while you're replacing the batteries.

Replacing the backup battery in your AlphaSmart 3000, Neo or Neo2 can be quick, easy and avoids loss of your hard work when the regular batteries die or while you're replacing the batteries.

Replace Your Backup Battery Before It's Too Late

If you own an AlphaSmart 3000, Neo or Neo2 word processor, you know these devices are slowly aging as the years advance. Although these are hardy little machines that have stood the test of time, the backup battery inside an AlphaSmart will eventually die, which puts any text you have saved on it at risk of being forever lost when you change the AA batteries or they go dead before you have a chance to replace them.

Replacing Your AlphaSmart's Backup Battery Is Easy

AlphaSmart's product manuals for the Neo2 that I have state that the backup battery will last 5-7 years. For the AlphaSmart 3000 and the AlphaSmart Neo that came before it, they're probably well on their way to having a dead backup battery, depending on date of manufacture or when the last time that battery was replaced, if ever. One thing that's interesting though is that the manual only refers you to contact technical support, rather than telling you how to replace the battery on your own.

I decided to take my own Neo2 apart and photograph the process, just bear in mind that the AlphaSmart 3000 and Neo models may differ slightly in terms of where the backup battery is located and the types of screws that must be removed, but should be very similar.

AlphaSmart Backup Battery Replacements

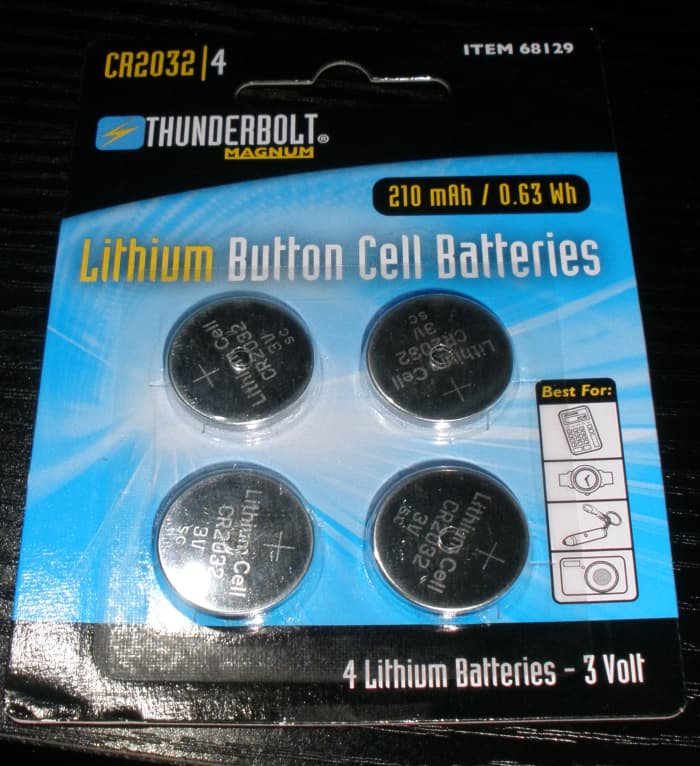

Any CR2032 coin cell battery can be swapped in to replace the old backup battery.  I prefer purchasing mine from Harbor Freight since they're so cheap.

Any CR2032 coin cell battery can be swapped in to replace the old backup battery. I prefer purchasing mine from Harbor Freight since they're so cheap.

Items You Will Need To Replace Your Backup Battery In A Neo2

To replace the backup battery in a Neo2, you will need:

  • A T6 screwdriver
  • A T10 screwdriver
  • A CR2032 coin cell battery
  • A steady hand

AlphaSmart Backup Battery Replacement Process

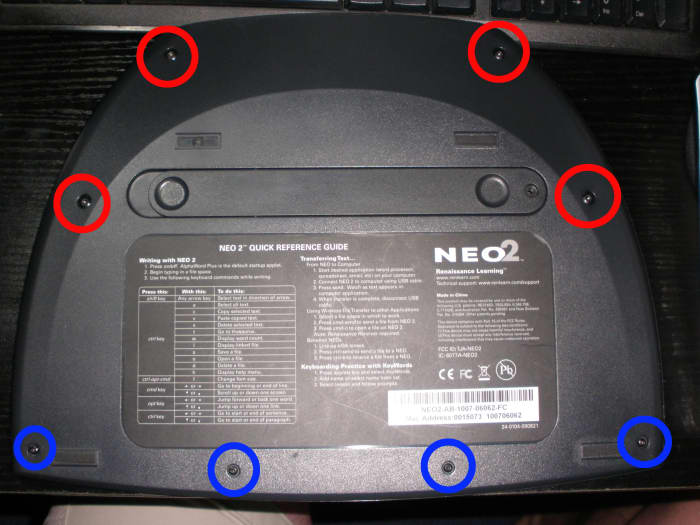

Remove the four T10 screws that are circled in red, as well as the four T6 screws circled in blue.  The battery door screw doesn't need to be removed on the Neo2 to take the back panel off, mine was just missing this screw when I purchased it used.

Remove the four T10 screws that are circled in red, as well as the four T6 screws circled in blue. The battery door screw doesn't need to be removed on the Neo2 to take the back panel off, mine was just missing this screw when I purchased it used.

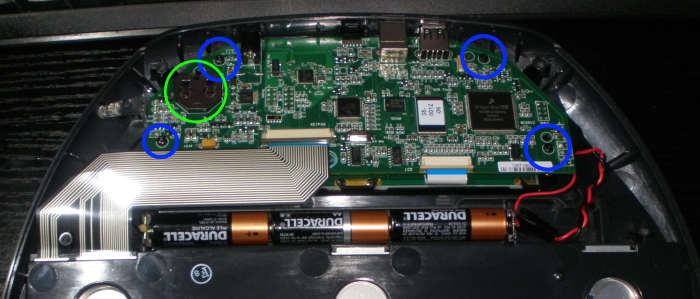

Remove another four T6 screws circled in blue, from the motherboard.  The battery holder is circled in green.

Remove another four T6 screws circled in blue, from the motherboard. The battery holder is circled in green.

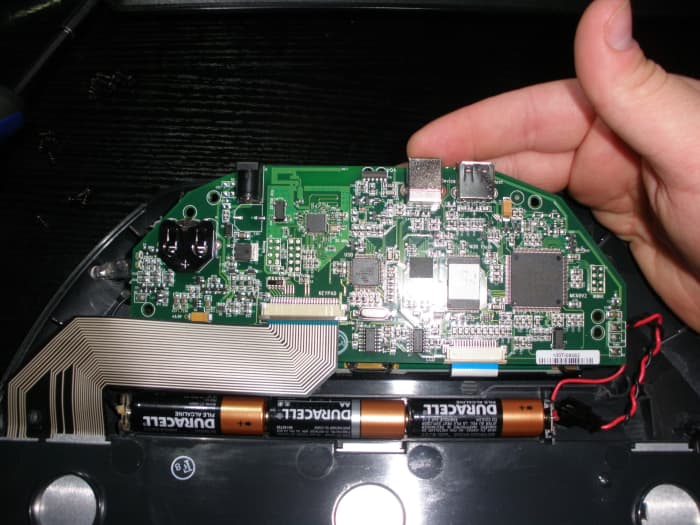

Gently lift the motherboard without putting any tension on the ribbon cables that are attached to it, and then remove the battery from its holder.  Insert the new one positive or '+' side up and put everything back together.

Gently lift the motherboard without putting any tension on the ribbon cables that are attached to it, and then remove the battery from its holder. Insert the new one positive or '+' side up and put everything back together.

Backup Your Text Then Proceed With The Battery Replacement

First and foremost, go ahead and back up any text you have stored on your AlphaSmart word processor, either by using Neo Manager so that you can send the text back to your Neo or Neo2 afterwards in case it is lost, or open your favorite word processor, plug in your AlphaSmart device to a USB cable, and hit the 'send' button and have it transfer your text so that you can save it on your computer.

Where do you find a replacement for the backup battery in your AlphaSmart you might ask? The 3000, Neo and Neo2 all use the standard CR2032 coin cell battery, which most drug stores carry. I personally buy mine from Harbor Freight since I can get a pack of four at less than $4, and I can use them in other things, like car key fobs, scales and other small devices that require them.

After backing up my text and with a replacement backup battery in hand, I flipped over my Neo2, revealing four T10 screws that reside in the upper half of the bottom casing and four T6 screws that hold the bottom edge together. Remove these 8 screws and you can gently lift off the back of the case. With the back off, you can then access the motherboard, which conveniently exposes the backup battery. The only thing preventing us from removing and inserting a new CR2032 coin cell battery is the mounting peg that sits behind the battery.

From here, remove the four T6 screws that hold the motherboard in and gently lift it up, taking care not to put any tension or strain on the ribbon cables that connect to the keyboard and display. With the mounting peg out of the way, use something like a small screwdriver or tweezers or any tool that will fit into the openings of the battery holder and push the old battery cell out of it. Slide the new one in place, with the side marked positive or '+' facing up away from the motherboard, just like the old coin cell was installed.

When I performed this DIY maintenance on my Neo2, I left the AA batteries installed, hoping that it would keep the RAM alive where the text is stored and it seems that it did. After sliding the new battery in place I put the motherboard back in its proper place, inserted the four T6 screws and tightened them down. From there, its just a matter of putting the back cover on and replacing and tightening the four T6 and four T10 screws down to secure it in place.

Proceed Worry Free With The New Backup Battery

When I powered my Neo2 back on, I was afraid I might see a message of some sort telling me that my data had been lost or my Neo2 had to be reset after changing the battery, but it fired up just like normal in less than 2 seconds and was exactly where I had left it in the last file I was working with.

If you use your AlphaSmart regularly, be it a 3000, the Neo or Neo2, this is a very cheap way to make sure that your text is stored safely at all times by replacing the coin cell backup battery at regular intervals. For users of the Dana and Dana Wireless though, there isn't a backup battery per se though the internal memory is kept alive for approximately 2 minutes by a small capacitor on the motherboard whenever the batteries are being replaced. However, the Dana's were typically sold with a rechargeable battery pack included, but those rechargeable batteries won't last forever. If you have a Dana or Dana Wireless, I highly recommend Vance Fry's battery hack so you can chuck your worn out rechargeable battery in the recycling bin and install 3 AA rechargeable NiMH batteries in the battery slot on your Dana.

This article is accurate and true to the best of the author’s knowledge. Content is for informational or entertainment purposes only and does not substitute for personal counsel or professional advice in business, financial, legal, or technical matters.

Questions & Answers

Question: I just replaced the batteries of mt AlphaSmart Neo2. When I opened it, it said there was a date change. And all my files were empty. Can I get my data back?

Answer: Unfortunately, there's no way to recover the data if your backup battery is dead and the AAs are removed for replacement.

Comments

Mike Perry on March 24, 2020:

Many thanks for an excellent tutorial. Not having a CR2032 and not wanting to make a trip just to get one, I substituted a compatible but thinner CR2016. Placing a dime on top of it provided just enough added thickness. It may not last as long, but that's no big deal.

A CR2025 and CR2020 should also work. The voltage is the same, the 20 is the diameter, and the last two numbers are the thickness.

Emma on November 06, 2019:

Thank you for this tutorial; my backup battery is now working in my Neo!

neo2fan on May 23, 2018:

Thanks jesimpki -- I had Ben's problem, where I was getting the fatal error messages after the replacement. File system was corrupt or something. I'm not sure it's a great idea to leave the AAs in during the replacement. When I first touched a screw on the motherboard, it sparked. But since the coin battery wasn't dead yet, maybe it would have sparked anyway. Still, I would just back all the files up first and accept that changing this coin battery means a factory reset.

Fortunately, your fix worked: I took the coin battery and AA batteries out, waited 10 minutes, put everything back in, and the unit had factory reset. I am very relieved.

Thanks for this great tutorial, I didn't have the screwdrivers I needed and your exact specs helped me get the right tools here. :)

shoppe on October 15, 2017:

Hi!

I too just followed your instructions without problem (thanks for showing me what to expect in advance) however I think I might know why your other user bricked his Neo.

Because in your instructions you leave the batteries in, the circuit board is live during the entire process. Depending on what you use to push out the coin cell, you could inadvertently cross a connection somewhere while you're doing this and fry a resistor or a cap or a transmogrifier somewhere, turning your precious Neo into a paper-weight.

A better way would be to offload all of your prose from the Neo first, then *remove* those AA batteries. Depress the power on button several times after this to hopefully deplete any capacitors that might be holding power. Then and only then, coax the coin battery out of the slot, preferably using a non-metallic tool.

If using a metallic tool (like I did) then just be very careful not to lay it across any contacts.

jesimpki (author) from Radford, VA on October 13, 2017:

Awesome! Glad to hear she's still enjoying her AlphaSmart 3000! You're very welcome!

Rachelle Antoinette on October 13, 2017:

Just helped my aunt with her 3000 version using your instructions. She is now one very happy lady .. Thank you!

jesimpki (author) from Radford, VA on August 12, 2017:

Oh no! Try removing both the coin cell battery and your AA batteries and leaving them out for several minutes, and then try it again.

Ben on August 12, 2017:

I followed all the steps on this article and it completely corrupted my Neo2. Now getting endless error messages and the device is unusable.

morazan on May 30, 2017:

Thank you for specifying the exact screwdrivers needed. What a difference having the right tools makes! And the pictures were perfect. After a software update and a new lithium battery, my old Neo2 is as good as new. Question: what is the purpose of that red wire that leads to nowhere? Just wondering. Thanks again.

jukryn on February 08, 2017:

Hi there.

Is there any way to add the back-up battery option to a Dana? In other words, couldn't something inside be altered or added or something? I like the Dana, but can't put up with changing or charging the batteries and having to monitor the power all of the time, not to mention being forced to re-calibrate the screen. (All that is too high-maintenance for me.) The great thing about the Neo is that it goes forever without changing the batteries, and if they happen to wear out, the backup is still there. I like the Dana's big screen. Otherwise, the Neo has everything I need, no bells and whistles.

jesimpki (author) from Radford, VA on January 21, 2017:

You're quite welcome NAK Baldron!

NAK Baldron on January 21, 2017:

Thank you so much for this! You're a life saver.

jesimpki (author) from Radford, VA on October 27, 2016:

Hi MaggiN, if your Neo isn't working with a fresh set of AA batteries, I would try plugging it into a USB port and see if it powers on when connected. If so, it may be that your problem resides in either the battery bay and it's connectors or some problem on the motherboard for your Neo.

MaggiN on October 26, 2016:

Will this work with a NEO(1)? I am opening it for the first time in years, and seeing a "Ni-MH rechargeable battery 3.6v 1600mAh" green battery pack -- Amazon search seems to reveal it's available, but in a 'pack' not in a single line. And putting regular AA batteries in just now did nothing. How can I get mine up and running again? Follow your steps above? Thanks!!
