How to Repair a "Not Recognized", Malfunctioned USB Flash Drive

If you have been using USB flash drives, you might be familiar with some of these error messages.

  • "USB device not recognized."
  • "The device you connected to this computer malfunctioned, and Windows does not recognize it."
  • "One of the devices attached to this computer has malfunctioned, and Windows does not recognize it. For assistance in solving this problem, click this message."
  • "Unknown drive, port reset failed."
  • "Unknown device, descriptor request failed, error code 43."
  • "Drive did not load successfully."

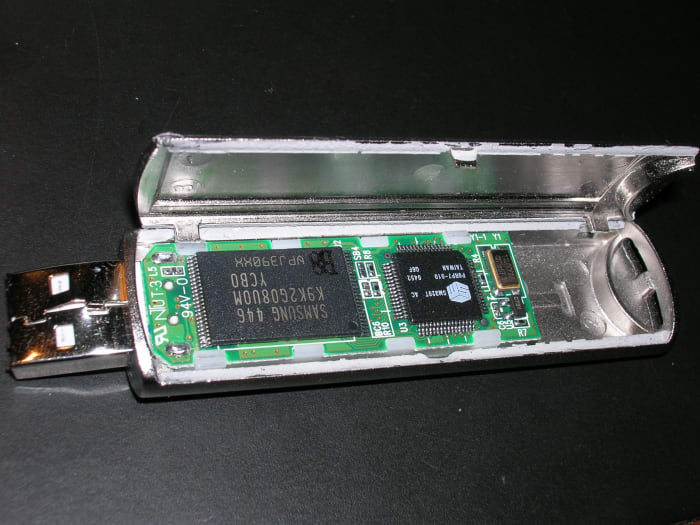

disk drive
disk drive | Source

If you are just starting to use flash disks, expect to see these messages in the right bottom corner of your computer screen. The flash drives get malfunctions with time & use, and can stop working completely. The messages usually indicate that your internal storage device or computer has some issues that need to be solved.

In addition to the above mentioned errors, there are other less serious errors of flash sticks that should not make you panic, such as:

  • "This device can perform faster if you connect it to a USB 2.0 port."
  • "Generic volume cannot be stopped right now."
  • "The disk is write protected, remove write protection or use another disk."
  • "Pen drive is detected, but not showing in My Computer."
  • "Please insert disk into drive."
  • "Please insert a disk into drive windows."
  • "Can’t format the drive, quit any disk utilities or other programs that are using this drive, and then try formatting again."

Some Flash Drive Error Messages That Should Put You in a Panic Mode Include:

  • "Please insert disk into removable disk."
  • "Format Disk" and of course."
  • "USB Device Not Recognized or Malfunctioned."

You may have to forget about your disk if you see some of these error messages on your screen, or if your USB flash drive is not showing up or not detected. Your drive could be dead, and the best thing to do is to recover data or files contained in it.

In this article, I will show you how to fix a USB flash drive that is not recognized in Windows 10, Windows 8, Windows7, Windows XP and other systems. I will also teach you how to repair a broken USB stick. In addition, I will teach you how to recover data from dead, damaged or corrupted drive without formatting. But first,

How to Fix a Malfunctioned USB Flash Drive that is not Recognized or Detected

There are several ways to fix your storage device based on the problem it has. Some of the problems are minor, but may give you a hell of a headache. Save yourself from unnecessary stress by learning numerous ways of repairing your drive.

The problem with your flash disk could be due to damaged port or slot. You can insert the pen drive in another port to see if it can work. In fact, this is what you should always try first when your storage stick has issues. You can then perform a USB port repair if you find this is the problem.

To fix the port problem, follow this procedure: Start> Control panel> Hardware and Sound> Device Manager> Universal Serial Bus> Uninstall> Enter> Scan for hardware changes (click on the blue icon to reinstall).

Your mass storage device could also be unrecognized because of using it in a computer with a different bit. If your drive was written by a 32 bit computer, it may not work on a 64 bit computer and vice versa. So know your computer bit in order to use the right flash stick.

The disk could also have been encrypted on another device. An encrypted drive is protected by a password. Use the device which encrypted the disk to fix the problem. Just enter the encryption password and your storage stick should work.

A damaged USB interface or cable can also make your storage device show the "malfunctioned" error message. Use another cable to see if it can work. Also try on another interface. Your device should work if the issue was with the cable or interface.

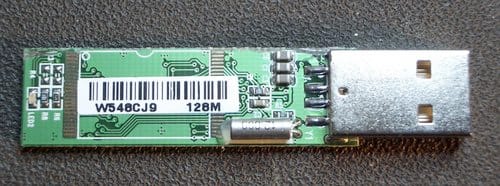

damaged flash
damaged flash | Source

If your drive has corrupt partitions, you will definitely get one of the above error messages. Use the Disk Management tool to see the status of the partitions. If they are not "Healthy", use tools such as TestDisk and PhotoRec to fix the problem.

Follow this path: Start menu> Disk management> Create and format hard disk partitions> Removable disk.

Alternatively: Press Windows key and R together and type in "diskmgmt.msc", then Enter.

If your mass storage stick is lacking a drive letter, you can also have the error messages appearing on the screen. The common message here is "USB drive is detected, but not showing in My Computer."

Follow this path to fix the problem: Press Windows key and R together and type in "compmgmt.msc", then go to Disk management (find your disk) > Change Letter and Paths (right click) > Change> Add Letter (choose an unused letter).

Download the latest software or update the existing one to solve the problem. But first, check if the problem is with the drive system.

Press the Windows key and R together and type in “devmgmt.msc”, then Enter. You can also type in "dev man" in the search box of the Start menu.

Check for a yellow triangle and black exclamation mark on the driver’s icon. This symbol shows that a driver tool has a malfunction. Learn more about the problem on "Properties."

Try installing the latest tool to see if the USB stick can work. You can also update the software. Click on the "Update Driver" for the Windows to find the right update.

Summary: How to Repair Malfunctioned USB Flash Drive that is not Detected or Recognized

1. Insert drive on another port to see if it can work.

2. Use drive on a computer with the right bit.

3. Use disk on a device which encrypted it.

4. Use another cable or interface to see if it can work.

5. Fix corrupt partitions.

6. Enter a missing drive letter.

How to Repair a Broken USB Stem

  1. Get the following utility or tools ready to repair your broken USB stick: precision soldering iron, solder, wire strippers, small flat head screwdriver, cable and magnifying glass.
  2. Open the outer cover of the flash disk using the screwdriver. Do this carefully to avoid damaging the PCB board and NAND.
  3. Confirm the damage with the help of a magnifying glass or just naked eye. If indeed there is damage, you will be able to see a broken connection between the stem and the PCB board.
  4. Strip one end of the cable (0.6cm) and apply solder to the four wires.
  5. Locate the PCB pads and carefully solder the wires onto them. Start with the black wire on the left, followed by the green, white and red wires.

Your USB stick should be ready to use after these simple steps.

stripped usb stick
stripped usb stick | Source

How to Repair a "Broken" USB Stick - Video

How to Recover Data/Files from a USB Flash Drive

If your device is damaged beyond repair, you may have to concentrate only on recovering the data. Some conditions that can make your device dead include: damaged circuit board (blown resistors/capacitors, lifted pads, damaged NANDs and broken crystal oscillator), damaged controller chip and unresponsive drive.

Recovering data from a flash disk is a complicated task. You may have to a hire an expert to do the job for you, but read the following steps to see if you can do it own your own.

  1. Get recovery software and a NAND reader that supports the drive’s controller type. Look on the controller chip to know the exact type, but be careful when examining the chip to avoid damaging the PCB board and NAND.
  2. Carefully separate the NANDs from the PCB using a precision soldering iron.
  3. Place the NANDs on the data recovering tool, which consists of NANDs readers, and you will be able to recover the files.

Bonus:

How to Fix "Unable to Format Flash Drive" with CMD & Other Ways (3 Ways)

1. Type cmd in the prompt box> Format X: /FAT32 (enter your disk letter)

2. Type “compmgmt.msc” in the prompt box> Disk management> Format (right click on disk)

3. Insert windows installation disk> Reboot your computer> Enter any key> Format Your PC> Enter> Select your disk> Delete.

How to Fix "Device Not Recognized in Windows' (3 Ways)

1. Remove power supply plug from PC (laptop) > Restart PC> Connect device> Connect power supply to PC.

2. Device Manager> Universal Serial Bus controllers (expand) > Host Controller (right click)> Uninstall>Enter (Try also uninstalling all Universal Serial Bus controllers)> Restart computer (all controllers will be reinstalled automatically)

3. When booting up: Hit F8> Repair> System Recovery Options Window > System Restore.

How to Fix These Errors: Unknown Device (Port Reset or Descriptor Request Failed) Error Code 43

Type "devmgmt.msc" on prompt> Universal Serial Bus controllers (expand)> Insert disk> Unknown device (Port reset failed) > Uninstall (right click) > Restart PC> Reinstall.

How to Remove Write Protection from a Flash Drive

Type Regedit in run prompt> Enter> HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\StorageDevicePolicies> WriteProtect (double click) > Value Data> Enter> Restart your computer.

How to Fix "Generic Volume Cannot Be Stopped Right Now"

Download & install Unlocker software> My Computer> Flash drive (right click) > Unlock all> Safely remove the device.

How to Fix "Please Insert a Disk into Drive Windows Error" (2 Ways)

1. Download & install disk format tool> Format external storage drive.

2. Download & install Jet Flash> Format external storage drive (for transcend one)

How to Improve the Speed of a USB Disk (6 Ways)

1. Change the defect port.

2.Use cable that supports USB 2.0.

3. Updating drivers: Start> Device manager> Universal Serial Bus Controllers> USB 2.0 Root Hub Device> Update (right click)

4. Use software: Download & Install> Open> Scan> Drive> Update> Restart disk

5. Supply enough power.

6. Set BIOS: Restart computer> Press F2 or Delete> BIOS menu> high speed mode/2.0 mode.

Scanning the Plug and Play Device

My Computer> Removable Disk (right click) > Tools> Check now> Automatically fix file system errors and Scan for and attempt recovery of bad sectors (check boxes)> Start.

Reformatting Disk (Sandisk Cruzer)

Start> My Computer> Removable disk> Format (right click) > File system> NTFS> Quick format (uncheck) > Start.

You can also download a suitable formatting tool.

Recover Data with Only Software

Download & install recovery software> Open program> Drive> Options> Select file to recover> Next> Start.

In Conclusion…

USB flash drives errors can be devastating and can give you a hell of stress. You can lose your device or even your data from the malfunctions. But the good thing is that you can fix most of these errors, and also recover your data on your own or with the help of an expert.
