How to Silence Your Mouse Clicks

Updated on December 17, 2016
Loud Mouse Clicks are a thing of the past!
Loud Mouse Clicks are a thing of the past!

Before You Start

You can destroy your mouse if you do this incorrectly. Please read all steps and research anything about your mouse prior to attempting this. Although this is an easy project, practicing on an old mouse would be an excellent idea if you are unsure about your skill level with small electronic parts.

Skill Level: 3/5 Moderate (some experience with small electronics preferred.)

Estimated time to complete project: 1-2 Hours (give or take depending on skill level.)

Silent Mouse Clicks DIY Step by Step Tutorial

If you work with computers a lot like I do then you may run into the annoyance of loud mouse clicks and would probably want to make a silent pc mouse for yourself. With this tutorial, you will be able to see a step-by-step guide to virtually silence your mouse. We first must understand why the mouse is so loud with each click, then we can fix this unwanted noise.

The majority of parts commonly used to make a computer mouse are manufactured with cost in mind instead of quality or performance. This applies to the body all the way down to the buttons. Most parts are made of plastic or super thin, cheap metals to save on manufacturing costs. This results in loud clicks when the button is pressed.

This DIY tutorial will effectively silence the clicks in most current mouse devices. The method used in this tutorial, assuming it is correctly done, will not affect the performance of your mouse buttons. The mouse will still have the same resistance as before and they will still be just as easy to click. The only difference will be your mouse no longer producing disruptive clicks.

Step 1: Acquire the Needed Tools/Materials

What you will need for this project:

  • A loud clicking mouse of course.
  • Screwdriver(s) for removing mouse cover and internal parts if required. You may need more than one type or size. I used a small philips head screwdriver to remove all screws required. This may be all that you need but be prepared to run into a special screw head that requires a different screwdriver bit to remove.
  • Small flat blade. Either a razor blade, small pocket knife, or a thin metal paint spatula would work. Always use caution when using sharp blades or objects with your hands.
  • Flat working surface with good lighting. Preferably something away from any electrical devices since we are working on internal components of an electronic device. Ideally an anti-static work table setup would be ideal but it is not necessary if adequate care is taken.
  • Small tweezers or needle nose pliers. Personally, I can work on very small devices without the use of tools such as tweezers or needle nose pliers, but for this project you will most likely need them.
  • Scissors. This is for cutting the foam we will be putting inside the mouse switch. You should use the best pair you can get a hold of as this is a very small piece of foam we are cutting. It will need to be accurately cut in order to work correctly. A sharp razor blade can be carefully used in place of scissors if you do not have any.

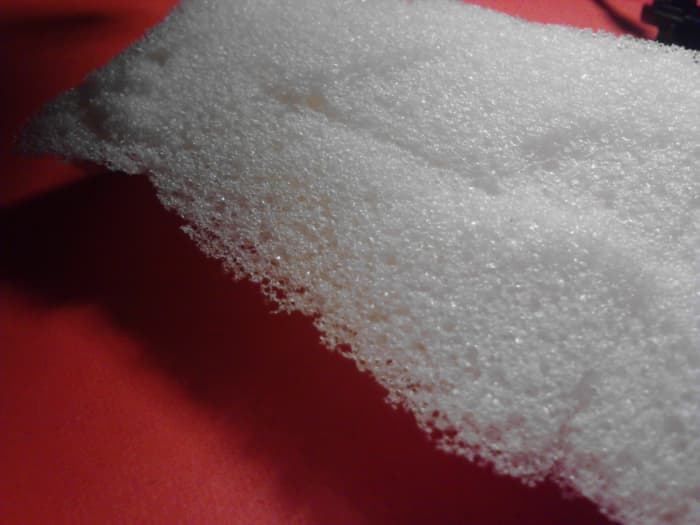

  • Small piece of high grade memory foam or similar material. This is the most important piece of making the mouse clicks silent. Without this it will not work correctly. A similar material may be used if you do not have access to any memory foam. I used my memory foam from a piece cut from an old Tempur-Pedic Memory Foam Pillow. A hard foam such as Styrofoam will not work! It must be soft but snap back into place like memory foam does.
  • Magnifying lenses if needed. I did not need any magnification lenses to do this project except when I was taking some of the pictures for the tutorial. I have pretty good eye sight but if you don't then you will probably appreciate having a magnifying tool handy.

Memory foam is used because it stays true to its shape longer than cheap foam. It also has a tighter density than cheaper foam. When compressed inside the switch, the memory foam sandwiches the metal contact tab and fully dampens the sound of contact between metal tab and the plastic body of the switch. Cheaper and lower density foam will most likely work but may not fully dampen the sound from the switch.

Step 2: Taking Apart the Mouse Carefully

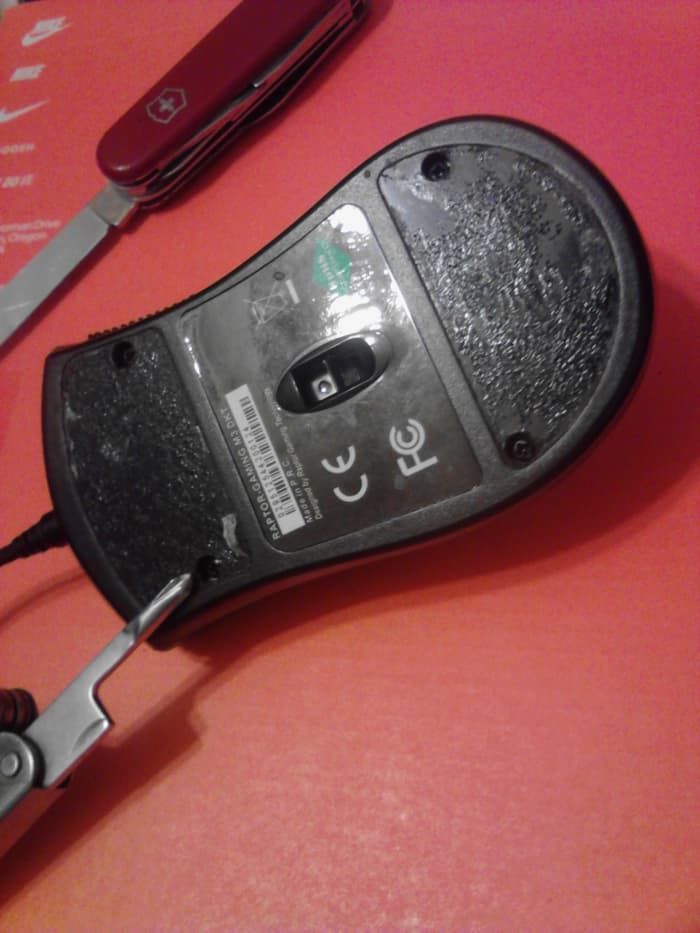

Bottom view of the mouse.
Bottom view of the mouse.
Remove any pads or covers which block access to the screws.
Remove any pads or covers which block access to the screws.
Remove last cover over the screws.
Remove last cover over the screws.

Step 3: Removing Screws and Cables to Separate Top and Bottom Halves

All covers are removed here to reveal 4 screws. Your mouse may vary. My mouse uses standard philips head screws. Your mouse may use less common screws so be prepared to buy a special screwdriver if needed.
All covers are removed here to reveal 4 screws. Your mouse may vary. My mouse uses standard philips head screws. Your mouse may use less common screws so be prepared to buy a special screwdriver if needed.

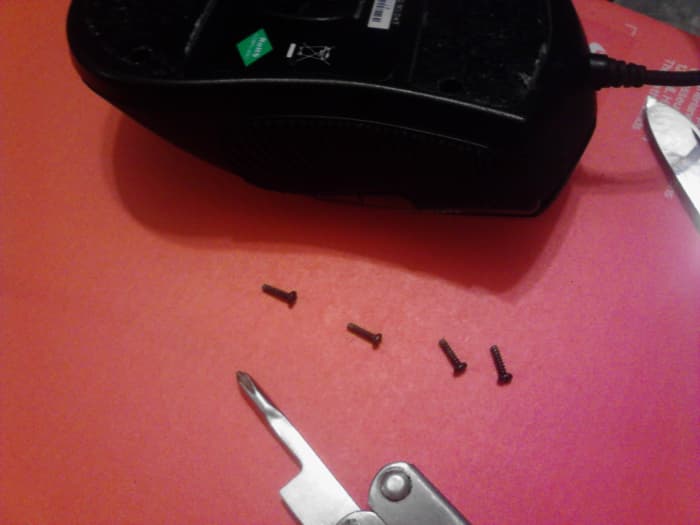

All screws removed to allow opening of mouse. Set aside all small parts in a container so you don't lose them!
All screws removed to allow opening of mouse. Set aside all small parts in a container so you don't lose them!

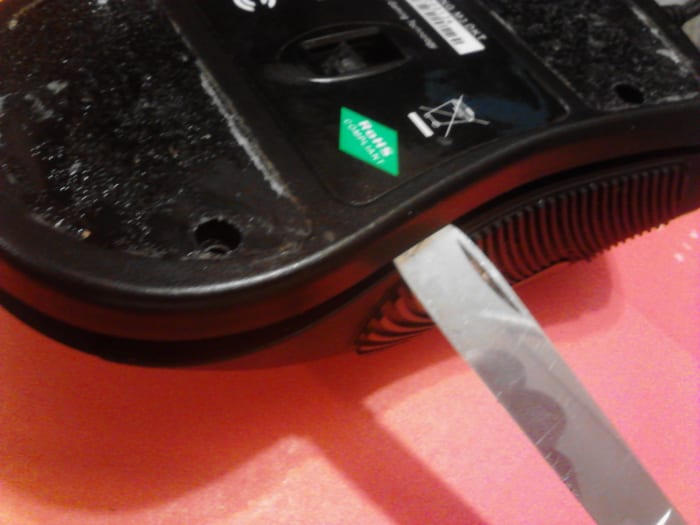

If necessary, use a flat blade to gently pry open the mouse.  A small, dull butter knife will work great. Use caution so you don't jam into the inside of the mouse to avoid damage to the internal workings of the mouse.
If necessary, use a flat blade to gently pry open the mouse. A small, dull butter knife will work great. Use caution so you don't jam into the inside of the mouse to avoid damage to the internal workings of the mouse.

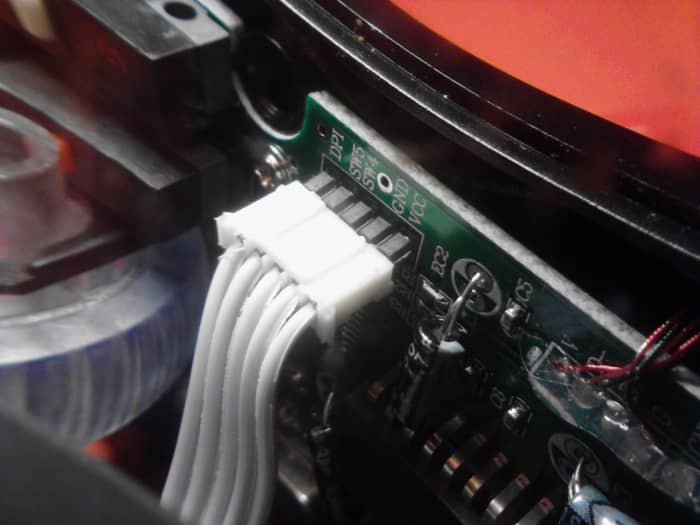

This small ribbon cable must be carefully removed before top and bottom halves can be separated. Your mouse may vary, check the insides before separating any parts from one another. Damaging any of these connected cables would not be good.
This small ribbon cable must be carefully removed before top and bottom halves can be separated. Your mouse may vary, check the insides before separating any parts from one another. Damaging any of these connected cables would not be good.

Step 4: Loud Computer Mouse Ready for Silencing!

Top and bottom halves have been separated.
Top and bottom halves have been separated.

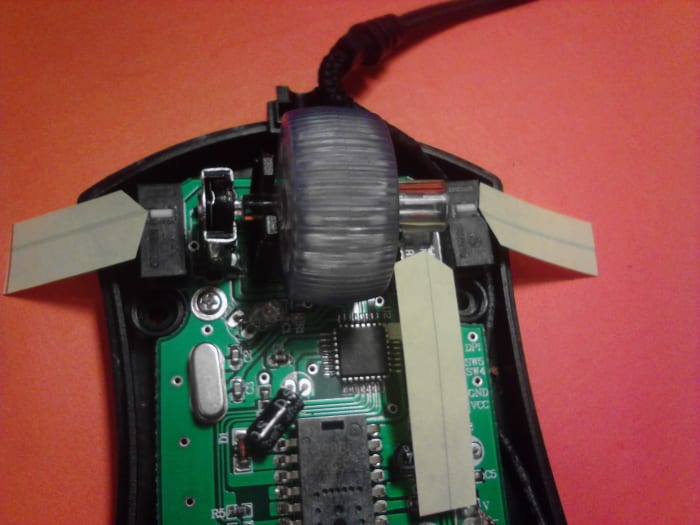

These 3 yellow arrows show the 3 buttons/switches which may be silenced. The arrow on the left is the left button switch, middle arrow is the middle switch, and the right arrow is the right switch.
These 3 yellow arrows show the 3 buttons/switches which may be silenced. The arrow on the left is the left button switch, middle arrow is the middle switch, and the right arrow is the right switch.

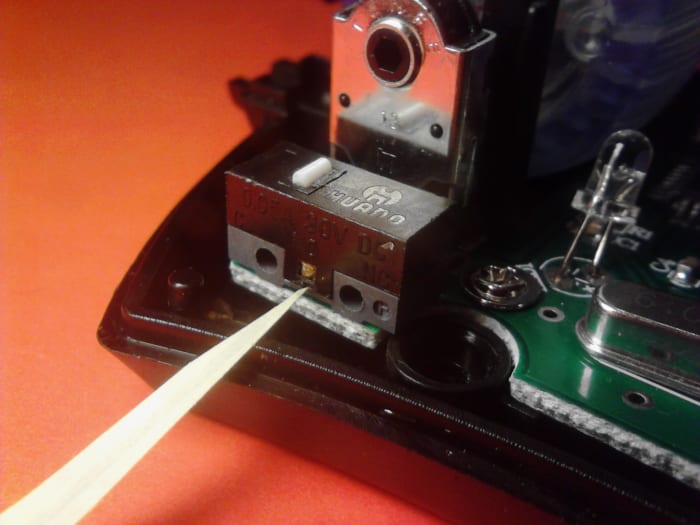

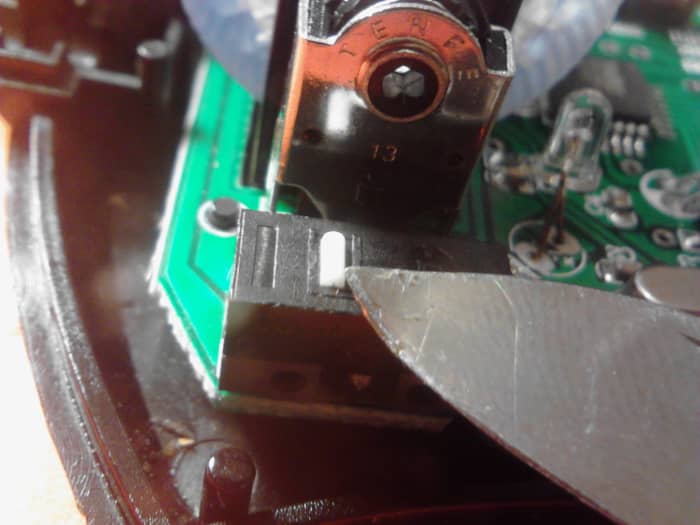

Pointing to the part of this particular switch covers clip latching point. Your switch covers should be similar. Check before attempting this next step.
Pointing to the part of this particular switch covers clip latching point. Your switch covers should be similar. Check before attempting this next step.

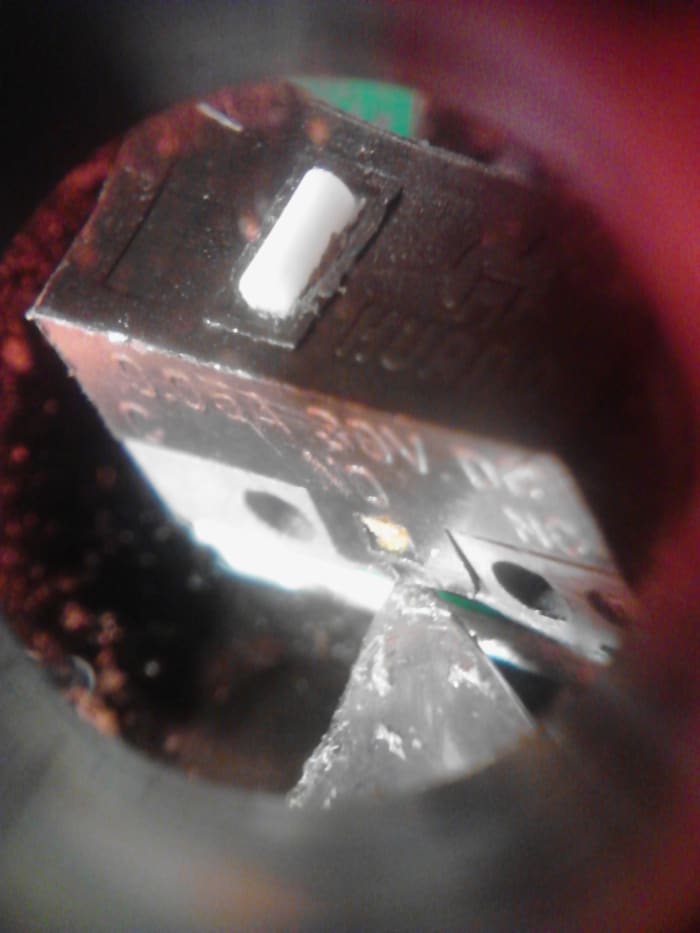

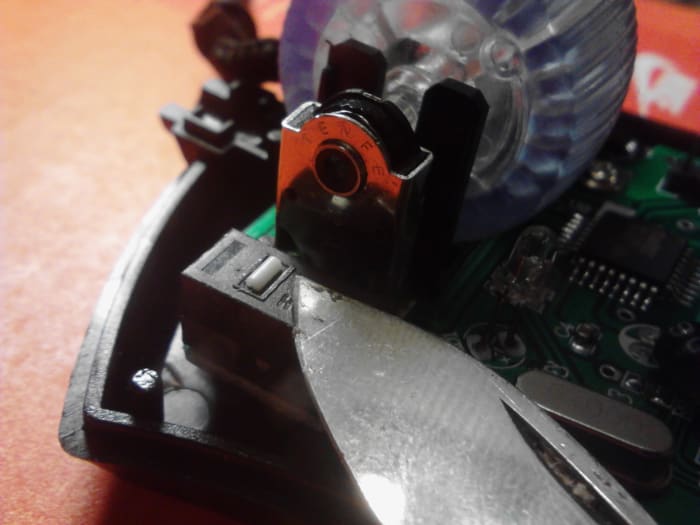

Close up shot of the latching point of this specific kind of switch. This switch has another identical tab on the opposite side of it that will come off once we remove the first side.
Close up shot of the latching point of this specific kind of switch. This switch has another identical tab on the opposite side of it that will come off once we remove the first side.
Use caution here as the switch can now be damaged very easily! The first side of this switch is up and now we can gently wiggle it off the other clip on the other side of the switch.
Use caution here as the switch can now be damaged very easily! The first side of this switch is up and now we can gently wiggle it off the other clip on the other side of the switch.

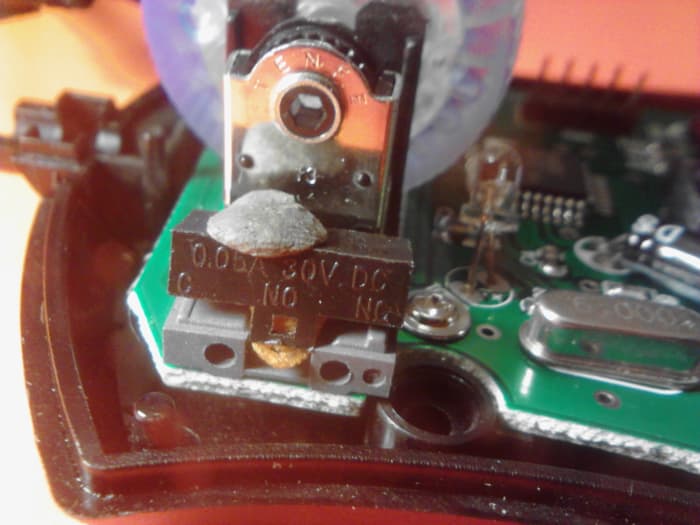

Notice the small gray material that looks like putty on top of the switch. This is sticky material for hanging posters on walls. It is holding the small white piece of the switch so it won't be lost when we take apart the switch.
Notice the small gray material that looks like putty on top of the switch. This is sticky material for hanging posters on walls. It is holding the small white piece of the switch so it won't be lost when we take apart the switch.

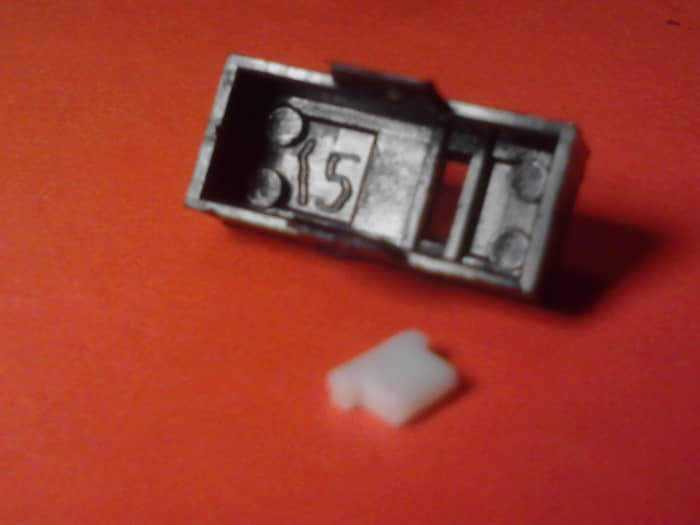

This is the switch cover removed. Notice the small white piece in the foreground. This is the part that presses the internal switch piece that makes the loud click sound we hate. Don't lose this or you will be in big trouble.
This is the switch cover removed. Notice the small white piece in the foreground. This is the part that presses the internal switch piece that makes the loud click sound we hate. Don't lose this or you will be in big trouble.

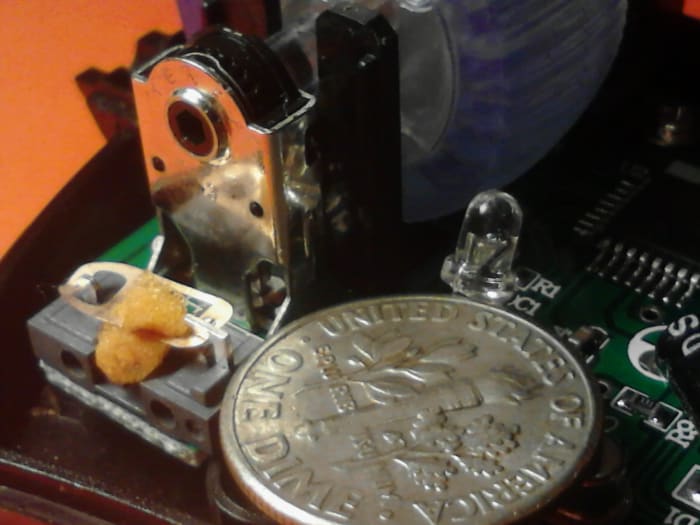

The small switch is on the left with a piece of orange memory foam already placed inside the switch. The dime is for size comparison. If you cannot work on something this small then get help or stop working on this until you are comfortable doing so.
The small switch is on the left with a piece of orange memory foam already placed inside the switch. The dime is for size comparison. If you cannot work on something this small then get help or stop working on this until you are comfortable doing so.
Side shot of my memory foam piece. This foam is from the inside of a Tempur-pedic Memory Foam pillow. I recommend only high grade memory foam.   Do not use something like Styrofoam.
Side shot of my memory foam piece. This foam is from the inside of a Tempur-pedic Memory Foam pillow. I recommend only high grade memory foam. Do not use something like Styrofoam.
Small memory foam piece next to a dime to show the thickness of the piece we need.
Small memory foam piece next to a dime to show the thickness of the piece we need.
Same piece of memory foam showing the width of the piece we need.
Same piece of memory foam showing the width of the piece we need.
Our small piece of memory foam now cut into 7 small pieces.
Our small piece of memory foam now cut into 7 small pieces.
Take one of those small pieces and start to insert it into the center of the metal clicker switch.
Take one of those small pieces and start to insert it into the center of the metal clicker switch.

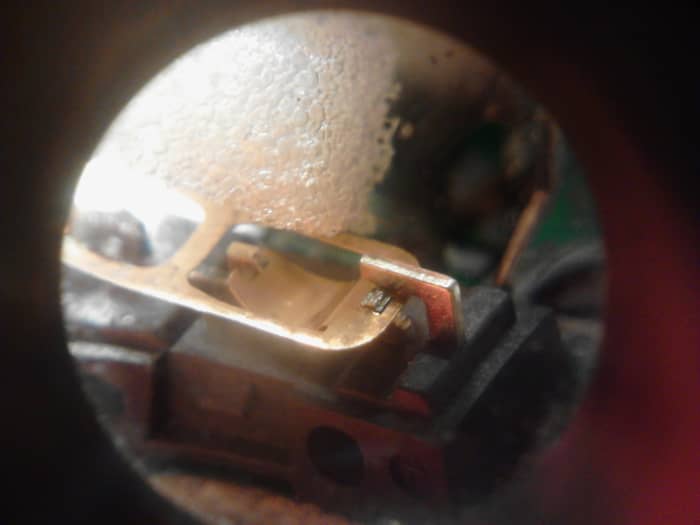

Magnified shot of the switch with the small piece of memory foam just above it waiting to be inserted into the switch.
Magnified shot of the switch with the small piece of memory foam just above it waiting to be inserted into the switch.
Start by using some tweezers to gently push/pull the piece of memory foam through this part of the switch. It must be done very carefully and it must be done on this part of the switch only!
Start by using some tweezers to gently push/pull the piece of memory foam through this part of the switch. It must be done very carefully and it must be done on this part of the switch only!

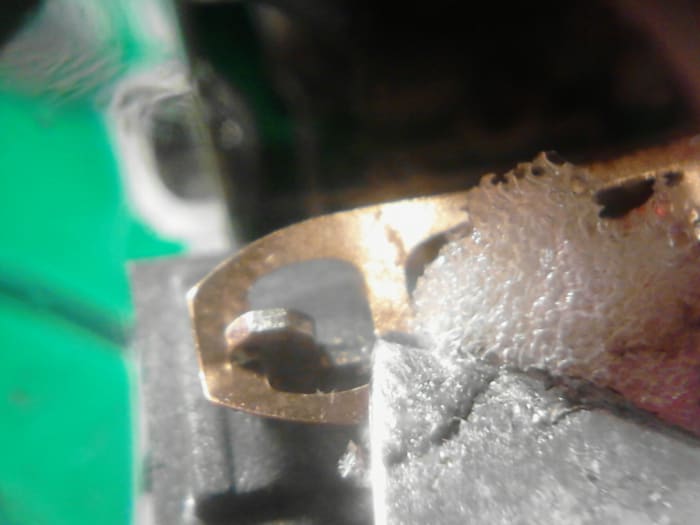

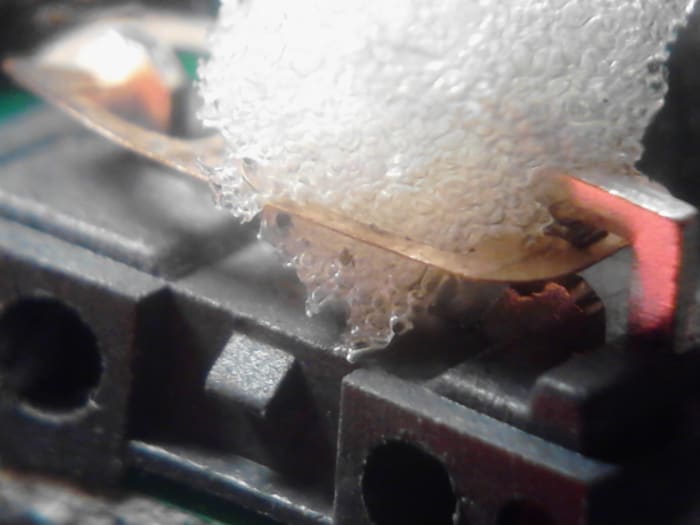

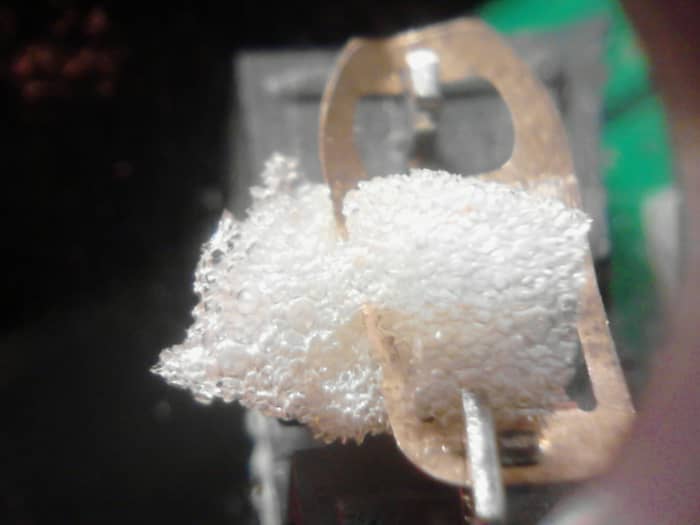

Notice how the foam piece is now pulled about half way through the metal contact piece. Make sure no foam has been jammed in between the metal contacting points of the switch.
Notice how the foam piece is now pulled about half way through the metal contact piece. Make sure no foam has been jammed in between the metal contacting points of the switch.

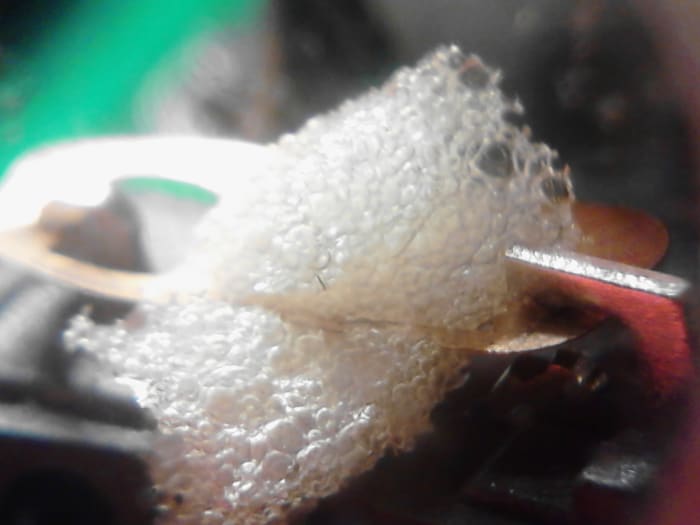

Top view of the same piece of foam on the switch showing it pulled about half way through the metal contact tab.
Top view of the same piece of foam on the switch showing it pulled about half way through the metal contact tab.

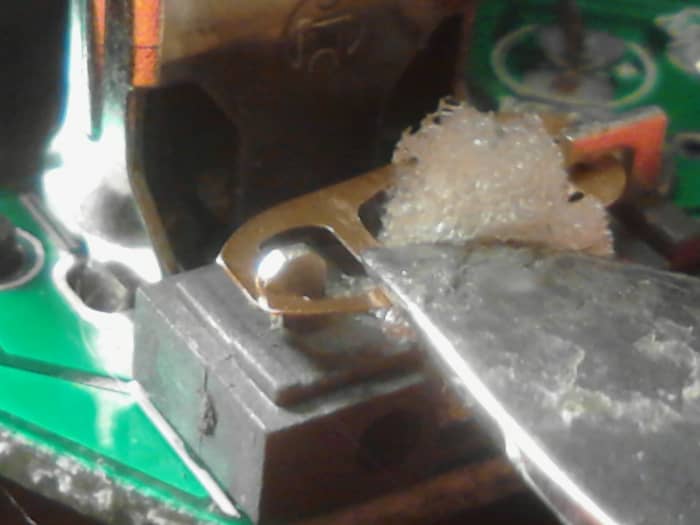

Using a knife or small pointed object, press down  gently on the small strip of metal going across the metal switch tab. This is the contact point of the switch when it is pressed down.
Using a knife or small pointed object, press down gently on the small strip of metal going across the metal switch tab. This is the contact point of the switch when it is pressed down.
Gently press up and down. Feel for the click of the mouse button. If done correctly it will be nearly silent. Adjust it to your liking. It will be more silent once the switch cover is installed again.
Gently press up and down. Feel for the click of the mouse button. If done correctly it will be nearly silent. Adjust it to your liking. It will be more silent once the switch cover is installed again.
Carefully replace the switch cover. Use care when replacing the small white portion of the button. This is easy to lose. Gently snap the cover evenly back on top of the switch. Trim or adjust the memory foam if you are having trouble.
Carefully replace the switch cover. Use care when replacing the small white portion of the button. This is easy to lose. Gently snap the cover evenly back on top of the switch. Trim or adjust the memory foam if you are having trouble.
Plug in your mouse before putting it back together and test your click button for silence and functionality. Use the knife point to gently press on the white button. This should now register as a silent click!
Plug in your mouse before putting it back together and test your click button for silence and functionality. Use the knife point to gently press on the white button. This should now register as a silent click!

Final Step

Assemble everything in the reverse order of removal. Everything should go back together easily. If you have to force something then you are probably doing it wrong. Nothing should be forced, if you are having to use more effort than normal you should take the mouse apart and check for anything causing hang-ups with reassembly.

If a switch is broken or the metal piece of the switch is dislodged from the rest of the switch you will need to use tweezers or needle nose pliers to put the switch back together. If parts of the actual switch break (meaning they snapped in half or bent beyond repair) you will need to replace it for the mouse to function normally. I dislodged one of the metal contact pads inside one of the switches I was working on. It took me about 5 minutes to get it back in correctly. They must be inserted back correctly. Study the way it looks before working on the inside of the switch in case something goes wrong. Replacing a broken switch will be much more difficult than the rest of this tutorial and will most likely take some intermediate soldering skills at the very least. Use caution inside the mouse, but mostly inside the actual switch(es) as they are very delicate.
