Best AC1900 Router: Linksys EA6900, Archer C9, Asus RT-AC68U, or Netgear Nighthawk R7000?

Updated on August 16, 2016

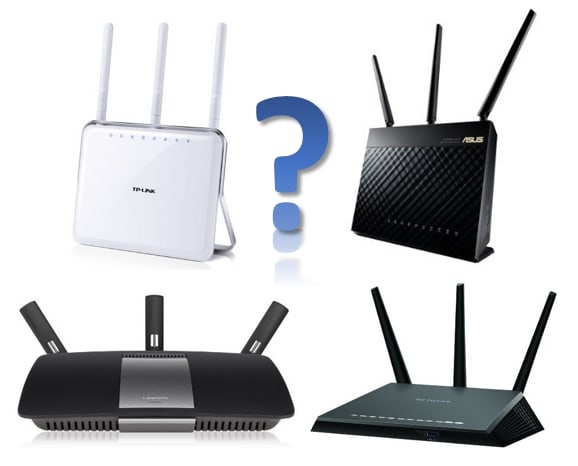

Which Is the Best Router?

Linksys EA6900, Archer C9, Asus RT-AC68U, or Netgear Nighthawk R7000. Which of these top AC1900 router is the best for you?
Linksys EA6900, Archer C9, Asus RT-AC68U, or Netgear Nighthawk R7000. Which of these top AC1900 router is the best for you? | Source

If you are looking for an AC1900 router, here are four of the best ones available on the market today.

Let me share with you one thing that I have found - the trick to be able to make the best pick is to understand all that jargon that the manufacturers throw at you, then map that to your requirements and voila you have it!

This way, you can easily see the similarities and differences between the Linksys EA6900, the TP-Link Archer C9, the Asus RT-AC68U, and the Netgear Nighthawk R7000. Then, making an informed decision as to which of these is the best router to buy will be a piece of cake!

The Top Four AC1900 Routers

(click column header to sort results)
Description
Linksys EA6900
TP-Link Archer C9
Asus RT-AC68U
Netgear Nighthawk R7000
Wireless Combined Speed
1900Mbps
1900Mbps
1900Mbps
1900Mbps
Data Transfer Rate
1300 Megabits Per Second
1900 Megabits Per Second
1900 Megabits Per Second
1900 Megabits Per Second
Individual Band Speeds 2.4GHz 5.0GHz
5GHz: 1300Mbps 2.4GHz: 600Mbps
5GHz: 1300Mbps 2.4GHz: 600Mbps
5GHz: 1300Mbps 2.4GHz: 600Mbps
5GHz: 1300Mbps 2.4GHz: 600Mbps
Wireless Range
Ultimate
Ultimate
Ultimate
Ultimate
CPU Processor
Dual Core 800Mhz
Dual Core 1GHz
Dual Core
Dual Core 1GHz
Beamforming
Yes
Yes
AiRadar with Beam forming
Beamforming+
USB Ports
1 USB 2.0 + 1 USB 3.0
1 USB 3.0 + 1 USB 2.0
1 USB 2.0 + 1 USB 3.0
1 USB 2.0 + 1 USB 3.0
IPv6
Yes
Yes
Yes
Yes
Gigabit Port
Yes
Yes
Yes
Yes
HD Streaming & Online Gaming
Yes
Yes
Yes
Yes
Guest Network
Yes
Yes
Yes
Yes
Total Lan Ports
4
4
5
4
Wireless Comm Standard
802 11 ABGN
802 11 AC
802 11 AC
802 11 AC
Approx Price at time of writing
$150
$130
$180
$190
Rating
3.5 Stars
4.5 Stars
4.0 Stars
4.5 Stars
Popularity - (1 -least, 4 most popular)
1
2
3
4
Linksys EA6900 vs TP-Link Archer C9 vs Asus RT-AC68U vs Netgear Nighthawk R7000. Which is the right AC1900 wireless router for you?

Which Is the Best AC1900 Router?

If you look at the table above, you will find that many of the important features are shared by these top four AC1900 wireless routers.

As such it is very easy to select your choice of what you feel is the top AC1900 router.

The Netgear Nighthawk R7000 is a very popular model and if you participate in the networking forums, you will find that many owners of the Nighthawk R7000 are very happy with it.

On the other hand, I feel that the TP-Link Archer C9 gives the best value. It has all the features of the Nighthawk R7000 but is around $60 cheaper than the Nighthawk R7000.

TP-Link AC1900 Smart Wireless Router - Beamforming Dual Band Gigabit WiFi Internet Routers for Home, High Speed, Long Range, Ideal for Gaming(Archer C9)
TP-Link AC1900 Smart Wireless Router - Beamforming Dual Band Gigabit WiFi Internet Routers for Home, High Speed, Long Range, Ideal for Gaming(Archer C9)

TP-Link Archer C9, even though not as popular as the Nighthawk R7000 is also a very good AC1900 wireless router and is a very good value at $60 less than the Nighthawk R7000 at the time of writing.


Wireless standard
Wireless standard | Source

Wireless Standards

If you are looking to buy a wireless router, one of the most important things to decide and look for is the version of the IEEE 802.11 standard which was created in 1997. It was named after the group formed to oversee its development.

You will normally see alphabets like a,b,g,n and ac appended after the 802.11.

Together these wireless standards are collectively referred to as the WiFi technologies.

So why are you selecting the "ac" standard? If you already know, then good. If not, then I will take you through a short history of the wireless standard for you to have a better understanding on where the "ac" standard is in relation to others and why you want to use that particular standard.

Different popular wireless standards in use today
Different popular wireless standards in use today | Source

802.11 a,b,g,n and ac? What Are Those?

802.11

As mentioned above, the 802.11 was the first standard. However it only supported a maximum bandwidth of 2 Mbps. Only 2 Mbps? You must be kidding...no I am not kidding.

As such it was too slow for most applications and hence became obsolete almost immediately. In fact I don't think you can find any 802.11 product in the market today.

802.11b

The "b" standard was then expanded from the 802.11 standard in July 1999 to be capable of supporting bandwidth up to 11 Mbps. However the standard was not regulated and as a result the 802.11b suffered from interference from microwave ovens, cordless phones, and other appliances within the 2.4 GHz range.

Pros and cons of the "b"

  • Pros of 802.11b - lowest cost; signal range is good and not easily obstructed
  • Cons of 802.11b - slowest maximum speed; home appliances may interfere on the unregulated frequency band

802.11a

While the 802.11b was in development, IEEE also created a second extension to the original 802.11 standard and designated it "a". As the "a" cost higher, business networks generally used "a" while the home market used the "b".

802.11a supports bandwidth of up to 54 Mbps in the 5 Ghz frequency spectrum.

  • Pros of 802.11a - fast maximum speed; regulated frequencies prevent signal interference from other devices
  • Cons of 802.11a - higher cost and a shorter range signal that is more easily obstructed

802.11g

The "g" was introduced around 2003. It was designed to combine the best of both 802.11a and 802.11b with support of bandwidths of up to 54 Mbps on the 2.4 Ghz.and backwards compatible with 802.11b.

  • Pros of 802.11g - fast maximum speed; signal range is good and not easily obstructed
  • Cons of 802.11g - costs more than 802.11b. As it is backward compatible to the "b", it also suffers interference on the unregulated signal frequency

802.11n

The "n" was then designed to improve on the "g" in the amount of bandwidth supported by utilizing multiple wireless signals and antennas through the use of MIMO (multiple input, multiple output) antenna technology.

It can provide for up to 300 Mbps of network bandwidth and offers somewhat better range over earlier Wi-Fi standards due to its increased signal intensity. It is also backward-compatible with the 802.11b/g.

  • Pros of 802.11n - fastest maximum speed and best signal range; more resistant to signal interference from outside sources
  • Cons of 802.11n - standard is not yet finalized and it costs more than 802.11g. The use of multiple signals may greatly interfere with nearby 802.11b/g based networks.

802.11ac

The "ac" is the newest generation of the Wi-Fi standard, The 802.11ac utilizes dual band wireless technology and supports simultaneous connections on both the 2.4 GHz and 5 GHz Wi-Fi bands.

The "ac" is backward compatible to 802.11b/g/n and bandwidth rated up to 1300 Mbps on the 5 GHz band plus up to 450 Mbps on 2.4 GHz.

  • Pros of 802.11ac - very fast simultaneous connections on both bands
  • Cons of 802.11ac - generally more expensive than the rest at the moment. However prices are expected to come down as it becomes more popular

What is bandwidth?
What is bandwidth? | Source

So What Is Bandwidth?

Bandwidth is a range within a band of frequencies or wavelengths. It covers the amount of data that can be transmitted in a fixed amount of time.

For digital devices, bandwidth is normally denoted as bits per second (bps) or bytes per second while on analog devices, it is denoted in cycles per second, or Hertz (Hz).

Give me speed baby...
Give me speed baby... | Source

What is the Speed of Wireless Networks?

The speed with which data can be transmitted from one device to another are often measured in megabits (million bits) or megabytes (million bytes) per second and are usually abbreviated as Mbps and MBps respectively.

Another term for data transfer rate is throughput.

Here are the typical speeds of the various 802.11 WiFi standards and their corresponding maximum speeds. These theoretical combined upstream and downstream wireless speeds are as follows:

  • 802.11b - 11 Mbps (2.4GHz)
  • 802.11a - 54 Mbps (5 GHz)
  • 802.11g - 54 Mbps (2.4GHz)
  • 802.11n - 600 Mbps (2.4GHz and 5 GHz). 150Mbps is typical for many network adapters while you can get 300Mbps, 450Mbps, and and up to 600Mbps speeds for some routers with channel bonding.
  • 802.11ac - 1300+Mbps (5 GHz). This is the newer standard that uses wider channels, QAM and spatial streams to get higher throughput.

I reiterate - those are all theoretical speeds. Actual wireless speeds normally vary significantly from the published theoretical maximum speeds due to various factors such as:

  • Distance - The distance from the access point and any physical obstructions such as walls; signal-blocking or reflecting materials will affect signal propagation and correspondingly reduce speed.
  • Interference - If you have other wireless networks or devices with the same frequency in the same area, it will affect the performance.
  • Shared Bandwidth - When the available bandwidth is shared between many users on the same wireless network it will also affect the performance.

Speed in the real world is different from theoretical speed
Speed in the real world is different from theoretical speed | Source

Internet Speed in the Real World

Apart from the three points mentioned abobe, your actual transfer speeds will always be slower than the theoretical speed because on a normal internet connection the transfer speed is affected by:

  • The quality of the line and the connection to the the Internet.
  • There is also the amount of the bandwidth used by your modem and provider to keep the line open! This is referred to known as "physical signaling overhead" which will not be available to you during your transfer.

Below is a breakdown of actual real-life average throughput you can expect from wireless routers within a reasonable distance, with low interference and with a small number clients connected simultaneously:

  • 802.11b - 2-3 Mbps downstream, up to 5-6 Mbps with some vendor-specific extensions.
  • 802.11g - ~20 Mbps downstream.
  • 802.11n - 40-50 Mbps typical, varying greatly depending on configuration, whether it is mixed or N-only network, the number of bonded channels, etc. Specifying a channel and using 40MHz channels can help achieve 70-80Mbps with some newer routers. Up to 100 Mbps are achievable with more expensive commercial equipment with 8x8 arrays, gigabit ports, etc.
  • 802.11ac - 70-100+ Mbps typical, higher speeds are possible over short distances without many obstacles with newer generation 802.11ac routers and client adapters are capable of multiple streams.

Internet Protocol
Internet Protocol | Source

IPv4 and IPv6

Keep seeing the terms such as Internet Protocol (IP), IPv6 and IPv4? So what are all those and how they can help me?

IP stands for Internet Protocol. IP is important as it specifies the technical format of packets and the addressing scheme for computers to communicate over a network. Generally networks combine IP with a higher-level protocol called Transmission Control Protocol (TCP), which establishes a virtual connection between a destination and a source.

You can look at IP as a postal system which allows you to address a package and drop it in the system. However there is no direct link between you and the recipient.

On the other hand, TCP/IP establishes a connection between two hosts so that they can send messages back and forth for a period of time.

Currently there are two versions of IPs: IPv4 and a new version called IPv6. IPv6 is an evolutionary upgrade to the Internet Protocol and will coexist with the older IPv4 for some time.

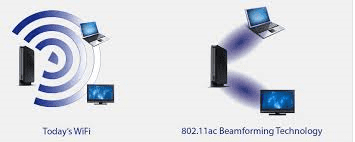

Traditional wireless router radiates the data while beam forming routers directs them at the clients
Traditional wireless router radiates the data while beam forming routers directs them at the clients | Source

Beamforming

Beamforming is a very simple concept. Instead of the traditional way of broadcasting a signal radially to a wide area with the hope of reaching your target, beam forming concentrates the signal and aims it directly at the target.

Also known as spatial filtering, beam forming is a signal processing technique used in sensor arrays for directional signal transmission or reception.

Beamforming can be used at both the transmitting and receiving ends in order to achieve spatial selectivity. The improvement compared with omni-directional reception/transmission is known as the receive/transmit gain (or loss).

Beamforming is becoming a common feature in many high end 802.11ac Wi-Fi routers and access points as it can help improve wireless bandwidth utilization and also increase a wireless network’s range.

As a result, you get improved video streaming, voice quality, and other bandwidth and latency-sensitive transmissions.

If you’re in the market and want a router that supports beamforming, check the router’s specs on the box or at the vendor’s website.

Do You Need a Modem?

Assuming that you have decided that one of the four top AC1900 router best suits your needs, then another device that will determine if your wireless router can perform to its best is the cable modem; assuming that you have subscribed to the appropriate bandwidth from your service provider.

Arris Motorola designs and manufactures some of the best consumer class cable modems in the market. The Motorola SB6121 and SB6141 are sufficient for most intent and purposes.

However for people who must absolutely have the fastest, then you must check out the Arris Motorola SB6183.

If you connect a phone via your modem, then the Arris TM822G is one good telephone modem to check out.
