Best Gaming Power Supplies by Budget 2016

If you're a gamer, getting a more efficient PSU can save you money in the long-run. We take a look at power supplies from $25 to $200 and give you our best picks for each budget.
If you're a gamer, getting a more efficient PSU can save you money in the long-run. We take a look at power supplies from $25 to $200 and give you our best picks for each budget.

If you leave your gaming PC running all day, consider the costs and benefits of purchasing an energy efficient power supply.

Better energy efficiency and quality mean not only increased longevity for your components but also significant money savings in the long-run.

In this post, we'll discuss everything you need to know when purchasing a power supply as well as give you a list of a few of our favorites for 2016.

Why Everyone Needs an Efficient Quality Power Supply From Day 1:

Your power supply takes the AC power from your wall and converts into DC voltage that your computer's electronic components use. Here are a few good reasons to get a good power supply upfront when building a gaming PC.

An 80 Plus Certified Efficient Power Supply is a Good Idea:

Power Supply Efficiency is basically the amount of power your power supply can convert from the wall. For example, if you have a power supply that pulls 500 watts from the wall while your PC uses 400 watts, then your PSU would be 80% efficient. I'll show you just how much you more you can save with this efficiency below.

How Power Supplies are graded:

80 PLUS power supplies are tested at 20%, 50%, and 100% in order to see how they maintain their efficiency at different loads. Efficiency levels are graded from standard, bronze, silver, gold, and platinum. A standard 80 PLUS PSU simply needs to achieve 80% efficiency at 20%, 50%, and a 100% while a platinum PSU, for example, would need to achieve 90%, 92%, and 89% at these same three loads.

Disadvantages of Using an Inefficient Power Supply:

  • Your power supply has to pull more power from the wall at all times in order to achieve the same usable power. This leads to a higher electricity bill.

  • They generate additional heat. Keeping your computer's components cool helps them to perform at a higher level and last longer. Since wasted power is dissipated as heat, a more efficient PSU leads to less heat in your case and therefore cooler components.

  • A Higher power bill. Just how much can an average gamer save by switching to an efficient power supply? While that depends on the amount of time that the average gamer plays and the amount of power which his rig needs here's a basic calculation based on what the additional power would cost, over time, in California. Keep in mind that this varies greatly by state. For example this chart shows that a kWH in Idaho is 8 cents while a kWh in California was 15.2 cents in 2011. Current costs show that the average in 2016 is 18.49 cents and only going up.

How Much Does It Cost to Run Your PC?

It's a lot more than you probably think:


Let's take a 90% average efficiency power supply vs. a 70% efficiency PSU and assume that your PC needs an average of 400 watts of power. This would be an acceptable assumption for a high-end rig. Also, let's assume that your computer is left on 8 hours a day. How much would you save in a year by having the more efficient power supply?

First, let's see what each one would cost.

90% Vs. 70% Efficiency for a High-End Rig:

The 90% efficient power supply would need to draw 444.44 watts in order to achieve the 400 watts of power your computer needs on average. Converting that to kWh you'd have a total of 3.552 kWh for one day or 1296.48 kWh per year. If you live in California, then the cost of running your rig at this rate would be $197.

For the 70% Efficient power supply, you'd need to draw 571.43 watts in order to achieve the average of 400 watts your computer needs or a total of 4.571 kWh in an 8 hour day. In a year this would be 1668.42 kWh for a total of $254.

As you can see this high-end rig would save $57 a year by having a higher level of efficiency. So, the better your rig and longer you leave it running, the more efficiency you should seek. Keep in mind that this calculation was done based on a computer running at a high level for 8 hours a day the entire year. The calculation for you might change considerably if you live in another state or have your computer in idle much of that time.

Should You Purchase a Power Supply with More Than What You Need?

I see people talk all the time about how everyone purchases a power supply far in excess of their needs and why this is a total waste. This is not entirely true. A PSU operates most efficiently between 40% to 60%.

At 220v some people choose to purchase a larger power supply to simply gain the additional efficiency and have less heat dissipation. *Keep in mind that the power required to operate at 50% is a lot less than what most think!

With all of this being said, if you purchase a highly efficient power supply, it'll likely be efficient across many capacities.

How to Calculate Your Power Supply Needs:

The easiest way to calculate your power supply needs is to use a power supply calculator. I'd recommend you use Cooler Master's or just plug everything into PCpartpicker.

Power Supply Capacitors:

Capacitors can wear out over time. Japanese capacitors have a better reputation because of the strict testing which is placed upon them. That being said you generally pay a premium for the potential better quality you receive.

Choosing a Power Supply for Your Needs:

You'll have to decide whether it's worth it for you to pay extra for a power supply that will potentially last longer and be more energy efficient. With 5 year warranties available even on inexpensive 80 Plus power supplies, I'd personally rather go with something that is inexpensive that I can potentially replace after 5 years.

Best PC Power Supplies By Budget in 2016

Budget $25 Power Supplies

EVGA's 430w W1 power supply is a good quality option for budget builders.
EVGA's 430w W1 power supply is a good quality option for budget builders.

I'm not going to recommend a particular power supply in this category. The reason for this is because at this price range your purchase is completely dependent upon rebates. Get a good rebate and you'll get a decent quality bronze certified power supply with 400 to 500 watts for around $25.

If you can't find a decent power supply at this price point, I'd honestly put more towards your budget. In other words, avoid the cheap power supplies of the world and you'll save money over time in hardware. In addition, you'll save money in energy efficiency.

EVGA 430W Power Supply

EVGA has become the major player in the PSU industry over the last few years. In the $25 to $30 price range, I like their bronze certified 430 W1. It's certainly not a high-end model with quality Japanese capacitors; however, it does the job for budget systems. This model also includes a 500-watt version that's regularly on sale for just about the same price. Go for that option if you need the extra wattage.

In terms of noise, this model certainly isn't a winner. It's a bit noisy on your desk which may be annoying for some. That being said, if your gaming PC is on the floor, you're more than likely ok.

Overall, this model from EVGA is typically what I go for at this price range. If a better quality option is on rebate, I'll occasionally go for that instead. I recommend it for a low budget gaming PC build of around $500. Anything much more expensive than that and I'd recommend a higher-end model.

EVGA 430 W1, 80+ WHITE 430W, 3 Year Warranty, Power Supply 100-W1-0430-KR
EVGA 430 W1, 80+ WHITE 430W, 3 Year Warranty, Power Supply 100-W1-0430-KR

Even without a rebate EVGA's 430w power supply is typically under $30.



Top PSU Under $50

In the $50 price range you're mostly looking at bumping up capacity rather than quality. Pictured here is Rosewill's ARC series power supplies which has decent quality and a good amount of capacity for what you spend.
In the $50 price range you're mostly looking at bumping up capacity rather than quality. Pictured here is Rosewill's ARC series power supplies which has decent quality and a good amount of capacity for what you spend.

Sometimes it's hard to tell the difference between power supplies you can get in the $50 price range and the $25 price range. That might sound strange, but the reason for this is that the higher-end gold models rarely go on rebate while models in this price range regularly do.

If you're wanting a true step up, consider getting something in the under $75. A good PSU at that price point would have quality capacitors, gold certification, and be from a reputable brand.

Rosewill ARC Series Power Supply

What you get at this price point is similar quality with additional capacity. One exception is Rosewill's ARC series power supplies which give you a good amount of bang for your buck.

The ARC uses a single strong 12V rail which is good for gaming systems. For capacity, it's available in capacities as low as 450 watts and as high as 750. If you're working in a tight space, consider one of the "M" versions of this power supply. These modular options add a clean and simple look to your system overall.

Perhaps the best part about the ARC is that it's nearly silent. It uses a quiet 120mm fan that's unnoticeable while typing at your desk.

The Best Gaming Power Supply Under $100

EVGA's SupserNova series gives you a tier 1 Gold certified option at an affordable price.
EVGA's SupserNova series gives you a tier 1 Gold certified option at an affordable price.

The $75 to $100 price range is the minimum I'd recommend for gaming computers in the $1,000 price range. Here you'll get something that should last 5 to ten years. In addition, you're likely to get a better warranty and better efficiency overall.

Considering that you're trying to keep your equipment safe along with saving some money, I'm surprised that more builders don't start here.

In terms of getting the best value for your money, there are several recommendations I'd make here. Yes, a good rebate on a good month can certainly change this and if you can go with a quality company like a Seagate for the same price as someone else, it's a no-brainer.

EVGA SuperNOVA

I've used EVGA's SuperNova series power supplies in a number of builds and continue to be impressed. It fits the mold for mid to upper range builds across the board. For capacity, it's available as low as 550W and as high as 1600W.

In terms of quality, it's top notch with Japanese capacitors, a ten-year warranty, and full modularity for cable management. It also looks fantastic. All the cables are braided and the paint job is impressive.

Overall, this would be a good power supply to go along with a new GTX 1070, GTX 1080, or a dual configuration setup.

Another solid option in this price range would be the Seasonic SS-660XP2. With tier 1 quality and platinum efficiency, it's a good option for around $105 after rebate. In the past, it's received a PC Perspective Editor's choice awards and continues to shine in terms of quality. Capacity for this option goes up to 860w. If you go for that, it'll likely set you back an additional $50.

The SuperNova series continues to be a good option here. For a platinum rated option, consider Seasonic.
The SuperNova series continues to be a good option here. For a platinum rated option, consider Seasonic.

Power Supplies Under $200

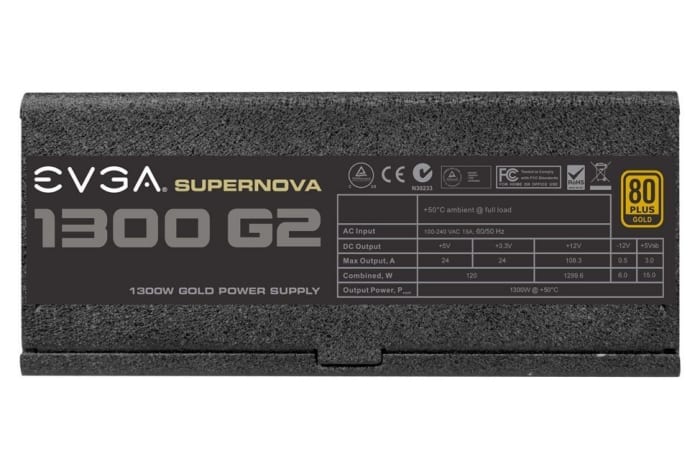

If you're spending this much, you're looking for high capacity and quality. I'll first point to the model I recommended for the $100 option in a higher capacity. The 1300W EVGA SuperNova G2 can be found for under $200, is fully modular, and even includes a ten-year warranty.

Any time a manufacturer gives that much faith in a product, you know the quality must be good. That quality goes beyond just paper stats. That being said, the G2 does have high-quality Japanese capacitors and is relatively quiet for its size. It also includes heavy-duty over voltage, under voltage, over current, over power, and short circuit protection.

Seasonic SS-1050XP3

Beyond this, I like Platinum models from Seasonic in the same price range. Model SS-1050XP3 is a fantastic option. It's fully modular and from a trusted brand in the power supply industry.

In addition, runs without the fan most of the time. In other words, it's nearly silent. This is especially true in hybrid mode. For energy efficiency, it's platinum rated and thus one of the best you'll find. For design, the fully modular cables, black paint design, and grey painted words are all top notch.

Clearly, there are many more quality options in this price range to pick from. Still, these are the two options I prefer.

80 Plus Certification Poll

What type of 80 Plus PSU Certified PSU do you use?

  • Standard
  • Bronze
  • Silver
  • Gold
  • Platinum
  • Not 80 Plus
See results without voting

My Final Thoughts

Energy prices should continue to rise over the next decade. With that in mind if you want to run your rig all day you can either move to Idaho, attach a solar panel to your PC, or get a highly efficient power supply. Thoughts?
