Review of the Vankyo Leisure 470 Pro Projector

Walter Shillington writes about products he knows firsthand. His articles focus on healthcare, electronics, watches, and household items.

The Vankyo Leisure 470 Pro Projector

The Vankyo Leisure 470 Pro Projector

A few short years ago, projectors were considered an expensive theatre-like alternative to the big screen television.

Technical advances, however, provided a steady stream of improvements leading to increased popularity and lower prices. Along the way, projectors have branched off onto three distinct pathways.

Some projectors boast 4K definition and are bright enough to light a screen even during the sunniest of days. While these devices are expensive, they can easily replace a television.

The second group is composed of projectors featuring a native resolution of 1920 x 1080 pixels. Their price range is much more reasonable, but because their output is not as bright, these devices are best used during the evening and at night. They provide impressive performance but cannot completely replace a television.

Portable and mini projectors represent the final group. While the device I'm reviewing today boasts a native resolution of 1920 x 1080 pixels, many are not as capable. These projectors are generally less bright but smaller and can be set up quickly. They are ideal for bedroom use and can be easily carried around and placed anywhere within or outside the house.

review-of-the-vankyo-leisure-470-pro-projector
review-of-the-vankyo-leisure-470-pro-projector

Description

The Vankyo Leisure 470 Pro is a small, lightweight, portable projector weighing less than two pounds. It is 3 inches high, 7.8 inches wide, and 5.8 inches deep. This projector is composed of white plastic with black accents.

The projector lens is fitted to the front of the Leisure 470 Pro. Focus, keystone correction and all other controls are accessible from the top. The power input and air intake are located on the projector's left side, and the resulting heated air is expelled from the right.

Also located on the right are a TF card slot, headphones/speaker output, AV input, two HDMI inputs, and a USB port. An infrared receiver and the 3W internal speaker's grill are positioned at the rear of this projector. The height adjustment screw and accommodation to attach a ceiling mount are fitted to the bottom.

This device comes with a padded carrying case capable of holding the projector, power cable, HDMI cable, cleaning kit, and remote.

review-of-the-vankyo-leisure-470-pro-projector
Cleaning kit

Cleaning kit

Specifications

  • Manufacturer: Vankyo
  • Name: Vankyo Leisure 470 Pro
  • Model: A01002
  • Dimensions: 7.6 x 19.7 x 14.6 centimeters (3 x 7.8 x 5.8 inches)
  • Weight: 949 grams (33.5 ounces)
  • Power Input: AC 100-240V, 50/60Hz
  • Projection method: Front/desk/ceiling
  • Display technology: LCD
  • Light source: LED
  • Brightness: 170 ANSI Lumens
  • Native resolution: 1920 x 1080 pixels (Full HD)
  • Supported resolutions: 1080p, 1080i, 720p, 576i
  • Contrast: 600:1
  • Noise Level: 45db
  • Bluetooth: No
  • Speakers: One (3 watt)
  • Wi-fi: 5G/2.4G dual-band WiFi technology
  • Interfaces: HDMI(2), USB(1), TF card, and AV
  • Correction: Manual vertical keystone (±15°)
  • Aspect ratio: 4:3/16:9/Auto
  • Projection size: 39 – 250 inch
  • Accessories: Remote control, power cable, HDMI cable, lens cover, user manual, padded case, cleaning kit, and remote.
HDMI cable

HDMI cable

Power cable

Power cable

Resolution

Native resolution refers to the projector's fixed horizontal and vertical pixel count. This projector enjoys a native resolution of 1920 x 1080p, which is also referred to as Full High Definition.

The picture definition is partially determined by the media being played. A movie streamed at 1024 x 768p is projected at the same resolution even though the projector is capable of FHD.

Front with lens cap removed

Front with lens cap removed

Rear view displaying infrared receiver and speaker grill

Rear view displaying infrared receiver and speaker grill

Brightness

The brightness of projectors is calculated in either LUX or ANSI lumens. The Leisure 470 Pro is capable of outputting 170 ANSI lumens. This is sufficient for operations in low light conditions.

View of right side featuring air outlet, inputs and audio output

View of right side featuring air outlet, inputs and audio output

View of power and air input on left side

View of power and air input on left side

Contrast

Contrast refers to the ratio of the light reflected from a completely white image and a completely black image. The higher the contrast ratio, the more perceivable detail is projected. The Leisure 470 Pro's contrast ratio is 600:1, which means a projected white image is 600 times brighter than a projected black image.

Top of projector

Top of projector

Bottom view of projector

Bottom view of projector

Keystone Correction and Focus

The keystone effect is the apparent distortion of an image caused by projecting it onto an angled surface.

This projector can correct vertical distortion of up to ±15 degrees digitally via the internal LCD panels of the projector. Horizontal distortion is alleviated by positioning the projector so that its lens is perpendicular to the center of the screen.

The Leisure 470 Pro can be manually focused by turning a dial directly above the lens.

View of focus and keystone correction dial

View of focus and keystone correction dial

This screw is used to raise the front of the projector, pointing it more directly at the screen.

This screw is used to raise the front of the projector, pointing it more directly at the screen.

Sound and Speakers

This device is fitted with a 3-watt internal speaker. It is reasonably loud, and although the speaker does not have the range to reproduce music correctly, it does a decent job with voices.

Since I am presently testing the new Tribit 90W Stormbox Blast, I connected an audio cable between the projector and speaker. The resulting sound proved to be incredibly good. A decent external speaker will be an excellent accessory if you desire theatre-level sound with this projector.

Inputs and Outputs

The Aux 3.5mm output is used to provide sound to an external speaker. Inputs include a TF card slot, an AV connection, a USB port, and two HDMI inputs.

This projector can also mirror whatever a wi-fi-connected smartphone is playing. Please note, however, that streaming services such as Netflix do not allow their content to be mirrored.

I plugged my Roku streaming stick into the projector's USB port and one of the HDMI inputs. Once I turned on the Leisure 470 Pro, it quickly loaded and automatically selected the Roku. Even better, the Roku remote could adjust the projector's volume and turn it off when I was finished for the night. This is the most Roku-compatible projector I have ever tested.

I connected my Roku streaming stick

I connected my Roku streaming stick

Positioning the Projector

If this projector were used permanently in a specific room, it would be best to mount it from the ceiling. This ensures the projector's focus and keystone adjustments need only to be set once.

If the Leisure 470 Pro is expected to be utilized in a variety of locations, it might be best to mount it on a large telescopic tripod.

The Leisure 470 Pro's projected image filled my 100-inch screen when positioned approximately eight feet from my dining room wall. The remote control can be used to decrease the size of the projected image, in one percent steps, to as low as 50 percent. This ability is helpful in certain situations.

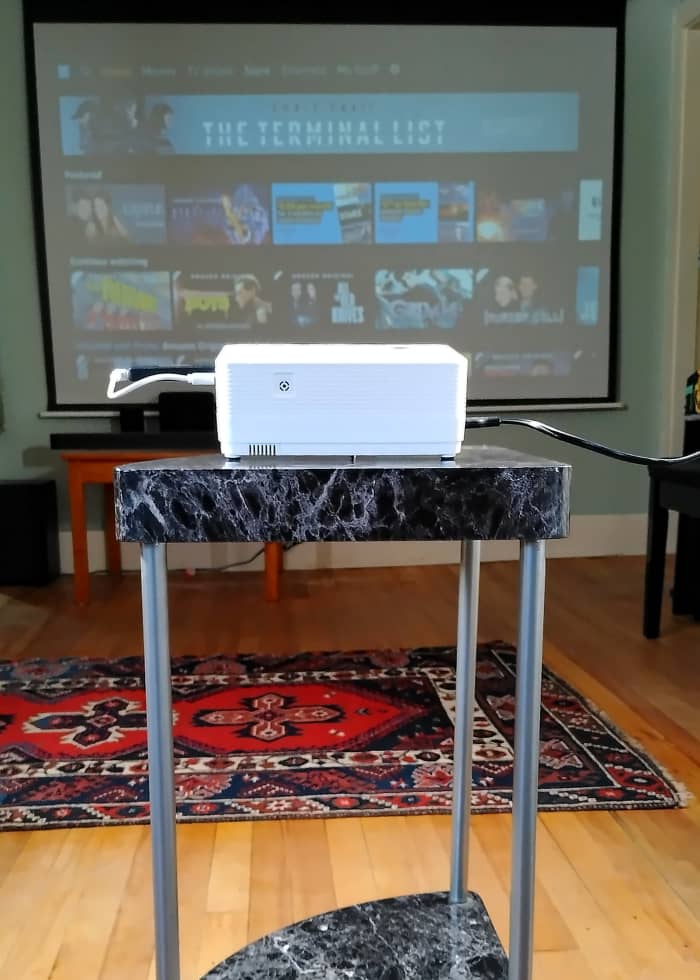

Daytime view.  Note that the projector is positioned so that it is aimed at the center of the screen

Daytime view. Note that the projector is positioned so that it is aimed at the center of the screen

Brightness Test

In the middle of the afternoon, I turned off the lights and closed my dining room drapes. Then I projected a movie onto a 100-inch screen. The image was discernible but severely faded.

Later that evening, as the sun dropped low on the horizon, I tried again. The image was much brighter, and the movie could be enjoyably watched.

Once it became completely dark, I watched another movie. At this point, the screen was quite bright, and I could almost believe I was sitting in a theater. All that was missing was the popcorn.

View of screen when projecting at night

View of screen when projecting at night

Overall Impression

This projector's resolution is excellent, brightness is fair, and contrast is acceptable. Its sound, however, is best aided by an external speaker. I especially appreciated the ability to use its remote to adjust the size of the projected image.

The Leisure 470 Pro presents good value and, due to its small size, provides the flexibility to use it in a variety of situations. However, if the intention is to permanently mount this projector in one room, a full-sized unit such as the Vankyo Leisure 495W would be preferable. These larger projectors are often Bluetooth capable and boast additional features such as compatibility with Dolby.

The Vankyo Leisure 470 Pro Projector is recommended for those looking for a small projector versatile enough to use in various locations.
