My Vintage Audio Wire Recorder by Webster-Chicago

Glenn Stok applies his engineering background to explore technological advances with vintage electronics and writes to share his experience.

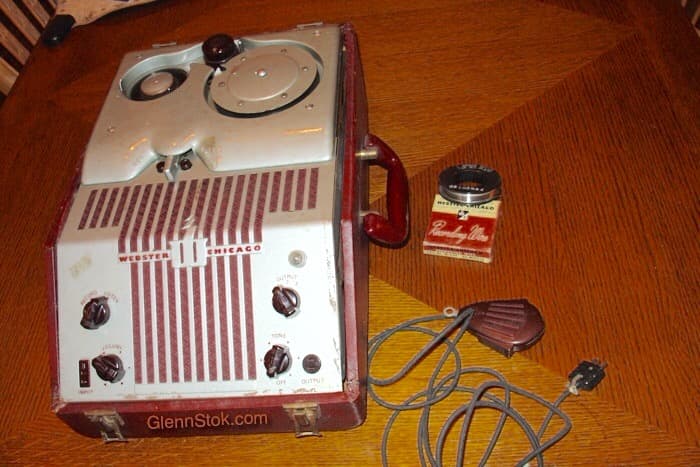

My Webster Wire Recorder Model 80. A Wire recording spool and the microphone are next to it. All pictures Copyright 2011 Glenn Stok

My Webster Wire Recorder Model 80. A Wire recording spool and the microphone are next to it. All pictures Copyright 2011 Glenn Stok

I still have my father's Vintage Webster-Chicago audio recorder from the 1950s. It uses magnetic steel wire spools (or reels) instead of tape. Here’s a little history of this unusual antique device. I also included a video below that I made so you can hear it play.

Wire Recorders vs. Tape Recorders

Steel wire spools were used for audio recording before using magnetic tape. Unfortunately, using wire was troublesome since it tended to break, and we couldn't splice it back together.

The method of recording with wire spools was similar to how tape recorders worked. While recording, the wire runs through a recording head that magnetizes the wire, creating an analog audio representation of the original sound with magnetically induced polarity along the wire.

When playing back recordings, the magnetic field on the wire induces an electric current as it passes through the head. That small current is amplified for playback. The same method is used for tape recorders.

The spools, using stainless steel recording wire, provided up to one hour of audio recording.

How Did This Begin?

In 1899, Valdemar Poulsen, a Danish inventor, developed a device to magnetically record sound on steel wire. He patented it and named it the Telegraphone.

That initial version of a sound recorder had the steel wire wrapped around a metal cylinder. Unfortunately, that limited its length since it didn’t have a reel-to-reel wire transport system.

Later, Poulsen’s company made a version of a dictating machine that used reel-to-reel wire.

By 1947, wire recorders were common for all sorts of audio recording.

My Magnetic Wire Recorder

One well-known manufacturer of wire audio recorders was Webster-Chicago. My father gave me his old Webster Wire Recorder. It was the Model 80, which was built around 1947.

I didn't want to lose the ability to use it whenever the feeling struck me to hear old family recordings, so I took care of it. I kept it in a dry closet rather than storing it in a damp basement.

Once in a while, I'd take it out, plug it in, and check to be sure it still worked. It gave me many years of enjoyment, playing old recordings that my father had made.

These units are obsolete now. However, I see some people selling them on eBay from time to time. But most are non-functional. I'm lucky mine still works, although it recently developed an AC hum, probably due to a dried-out capacitor.

How Audio Recording Technology Changed in 60 Years

Since the days of wire recorders, magnetic tape had gone through several transitions: Reel-to-reel, 8-track tape, cassettes. I still remember when Philips created the cassette tape in 1963.

Scroll to Continue

During my childhood, we already had reel-to-reel tape recorders. Technology has progressed a lot since then. Imagine that my father recorded on a wire. Here's a close-up photo of one of the wire spools.

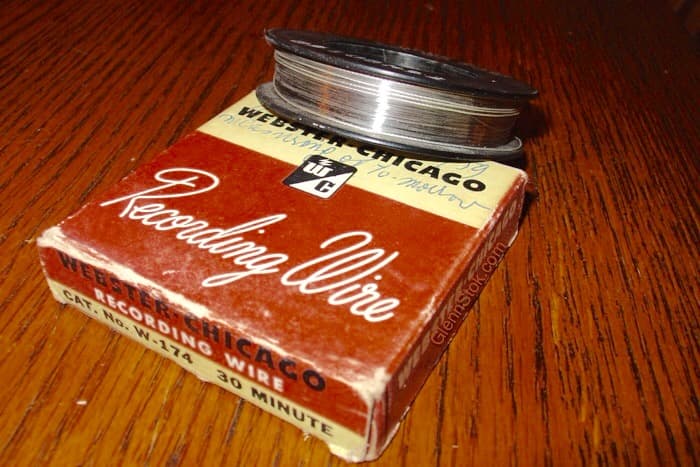

Webster Wire Recording Spool

Webster Wire Recording Spool

Bottom of Webster Wire Recording Spool showing 1 Hour recoding time.

Bottom of Webster Wire Recording Spool showing 1 Hour recoding time.

Things sure have come a long way. As we all know, even magnetic tape saw its days when technology changed to digital recording. Then, young kids would only know about iPods or MP3 players.

Those who are a little older might know about CDs, but even that is considered obsolete now. Today, the storage medium of choice for any device is flash memory.

Imagine how far we've come. I still remember 45 rpm records and LP vinyl records.

Before we know it, we'll have a multicellular neural recorder. Or maybe a microfluidic recording device. To make chips even smaller, we'll find ourselves using a bioelectrochemical recording device. Oh! But I think I'm getting ahead of myself.

Nostalgia with Old Family Recordings

Webster Wire Recording Spool. The wire starts with a thread to help spool it onto the take-up reel.

Webster Wire Recording Spool. The wire starts with a thread to help spool it onto the take-up reel.

My father loved to record classical music from the radio. So now I have dozens of wire spools with interesting and nostalgic broadcasts from the mid-1900s.

A few of the wire spools also contained private family recordings of my parents playing with my sister and me when I was only a few months old. I could hear myself as an infant, making baby sounds. Those recordings are precious!

It’s interesting to hear my father’s voice and my mother’s foreign accent that she had when I was only four years old. However, it felt a little strange listening to their voices recorded from that time.

How I Converted Steel Wire Recordings to MP3

The old wire spools tended to break with repeated use. They can't be spliced back together as we can do with recording tape. So to have a permanently preserved copy of all those recordings, I converted them to digital files. I saved them on my computer with a backup copy on a USB memory stick.

There was no perfect way to connect the Webster Wire Recorder to a USB port, so I used a Zoom H2n Mic/Recorder (available on Amazon) to create MP3 files. The Zoom H2n is a microphone that records WAV for MP3 formats onto a flash memory chip.

I avoided any problems matching vintage electronics with an audio connection by using the Zoom Mic. It's excellent for digitizing audio. You just need to be sure not to have any background room noise.

I made the following video to preserve this vintage relic. The wire recording you'll hear me play in this video is one my father made in 1956 off the radio.

My Webster Vintage Wire Recorder

A note about old-time radio recordings: According to the Library of Congress, radio recordings made before 1978 are generally in the public domain.

Preserving Vintage Electronics Equipment

Old electronic circuits tend to die after so many decades. The old capacitors dry out. The coating on wires becomes brittle and falls off, exposing the wires until shorts develop.

I'm glad I digitized all the wire recordings my father made to preserve them. Because, since I made that video, my Webster developed an AC hum due to old age.

It's amazing that it lasted this long, probably due to the way I stored it. I made sure not to leave it in a damp basement or a cold attic. Instead, I always kept it where the temperature and humidity were controlled.

Another thing that I'm sure had helped preserve its functioning was that I plugged it in and let it play every once in a while. That helped. It keeps the electronic components from drying out.

When you plug in an old electronic device after decades, it is possible that a capacitor can explode. I guess I had powered it up often enough to avoid this. Today all our electronic gadgets are solid-state. It’s all IC's now—Integrated Circuits.

A Final Thought

It's enjoyable to preserve these technological treasures so we can continue to experience the nostalgia and enjoy the memories of family recordings. But, it's even more significant because these treasures are kept from the days before our present recording methods.

Questions & Answers

Question: I have a Webster Model 80 wire recorder that belonged to my father. I am trying to get it to operate, but it will not turn on. The service manual says to replace the fuse and references a drawing which I do not have. Can you tell me where the fuse is located on the Webster Model 80 wire recorder?

Answer: The fuse is located behind the power plug connector at the back of the unit. It’s a black cylindrical fuse container about 1-1/4 inches tall and attached to the metal chassis.

You’ll have to remove the entire chassis from the wooden case. Turn it upside down with the rear of it facing you. Place the unit on a soft surface, so you don’t damage the reel or recording assembly while it's upside down.

You will see the fuse on the right side behind the power plug. You’ll need to remove the black fuse cover by unscrewing the nut that holds it to the chassis. Once you remove it, the fuse will be easily accessible.

© 2011 Glenn Stok


Glenn Stok (author) from Long Island, NY on April 16, 2020:

Gary Old geezer - Thank you for that information about the original microphone supplied with the Webster. That is very helpful.

Gary Old geezer on April 16, 2020:

The mikes supplied with these wire recorders were the crystal type-cheap to make, high output, high impedance and short life. They dry up and stop working. It is extremely unlikely that any of the original mikes still work (I've never seen one that does). You can test its output using an amplifier or oscilloscope. Take the mike apart as the element needs to be replaced. Look for a similar sized replacement on eBay. Radio Shack used to be the go-to place for these but no more. It will have to be soldered into place.

Glenn Stok (author) from Long Island, NY on April 14, 2020:

A. J. Miley - Here is the internal wiring of the microphone plug:

The wire is a shielded cord terminated with a 3-prong plug. Two prongs are vertical and one is horizontal. The wire has two leads, one white and the other unshielded. The latter attaches to both the horizontal prong and the vertical prong next to it. The white wire attaches to the other vertical prong opposite the horizontal one.

I don’t have a diagram of the microphone itself. And like you, I refrain from opening it.

A. J. Miley on April 14, 2020:

What is the wiring diagram for the microphone on the Webster-Chicago unit as you have shown above? I have one wired mic that does not work (for some reason, I hesitate to take it apart), and another that needs rewiring, same as the one you show above, which I call the Doctor Zarkoff microphone... LOL!!!

Glenn Stok (author) from Long Island, NY on March 02, 2020:

Thank you a Gary, for that helpful explanation of particular things that can go wrong as the Webster ages.

Gary Old geezer on March 01, 2020:

My experience with repairing these wire recorders is that if the fuse is blown, it is blown for a reason-usually the 6X5 rectifier, filter caps or power transformer is shorted. The fuse is mounted vertically so its failure is not due to sagging wire within the fuse. If the fuse is not blown, I've had an instance where the male power connector (which Glenn mentioned) can become corroded and just needs some sanding down (just had an instance of this last week, was quite surprised that the fix would be so easy). Generally speaking, these devices need recapping, sometimes tubes (though even weak, they usually are usable) and almost always, need to have their idlers replaced. Since I first communicated with Glenn, I have restored a few of these-very enjoyable listening to recordings of other people!

Glenn Stok (author) from Long Island, NY on October 19, 2019:

Gary Old geezer - I will send you a private email via your profile with my contact information. If you're interested in seeing my wire recorder, get in touch.

Gary Old geezer on October 19, 2019:

Hi Glenn. I am also on Long Island (Farmingdale) and I'm one of those old geezers who repair antique audio equipment but have never attempted work on a wire recorder. I repair tube radios from the 20s through 50s and car radios from the late 50s to late 60s. I stumbled on to your forum with an interest to buy and restore a wire recorder having my interest piqued from watching the movie "The Two Jakes". I'm bidding on a few on eBay now.

Glenn Stok (author) from Long Island, NY on March 23, 2019:

Jim Anderson - I know how frustrating that is. You need to find someone who still works with antique tube electronics. They are not common. Try doing a Google search for a local ham radio club. That might be your best bet. Good luck with it.

Jim Anderson on March 23, 2019:

I have a silvertone wire recorder model 7085 that all works except there's no sound. Several local electronic service centers refuse to work on it due to its electrical system. Where can I get this great antique repaired by responsible repair person/center.

Glenn Stok (author) from Long Island, NY on June 22, 2018:

Jason, Maybe you can find the microphone from an old Webster wire recorder on eBay. Put that in the search so eBay notifies you whenever someone lists one for sale. People are always listing old parts.

If you’re technically inclined, you might try attaching the old mic's plug to a new condenser microphone. Use a low-impedance mic (50–1,000 ohms).

Jason on June 21, 2018:

Great article. I recently got into working with wire recorders and have been loving discovering all the little gems that you find on various spool collections. I even managed to come across a few boxes of blanks and wanted to start recording myself. Problem is, the microphones I have just don't seem to be working right. More than likely, they need the element replaced, but I have no idea which ones to buy as a replacement. Any guidance?

Glenn Stok (author) from Long Island, NY on June 09, 2018:

David, contact the Southwest Museum of Engineering, Communications and Computation. Do a Google search. They may be able to help you.

David on June 09, 2018:

Can you fix mine?

Glenn Stok (author) from Long Island, NY on February 19, 2018:

Thats wonderful, Monica! If your local audio geezer is able to fix it, you're going to get a lot of enjoyment from those old spools.

It actually just might work if it was stored away well. The capacitors may be dried out and cause a loud hum. But he can fix that.

Leave a comment again to let me know how it goes.

Monica on February 19, 2018:

Hi Glenn. I just. retrieved my Dad's old Webster wire recorder from storage. What a treat to find your post and video! I have a local audio geezer (yes, that is what he calls himself) who knows how to fix these. I am going to bring it to him and not try to power it up myself. Six wire spools are included, a few are dated 1950 or '51. My dad was a musician, so I can't wait to find out what they might contain. Thank you again, these relics are very cool!

Glenn Stok (author) from Long Island, NY on August 16, 2017:

Casey -

My output switch also has 1,2 and 3. I never knew what the third one was. The second is for the output plug that goes to an amplifier speaker.

My unit also developed a hub recently. It's an AC hum due to the can capacitors going bad.

I digitized all my wire reels by placing a good mic next to the speaker. I know it's a cop out, but it worked. I didn't want to fiddle with direct audio wiring because it would have been too complicated matching the impedance and handling the different wattage and current with the connection. Unless you are good with those things, I recommend you get a good mic that connects to a USB port and do it like I did.

Casey on August 16, 2017:

My father recently gave me my grandparent's Webster Chicago Model 7. It is in amazing condition and works well except a hum. I read in the comments about the caps going bad and I will look into replacing them.

My question is about the Output section. There are three choices. I assume they are selectable between the internal speaker, the output port on the front, but what would the third be? Also, what is the connector used on the front as the output? What format would translate from today's wiring schemes? Is it a tip/sleeve situation? I ask because I want to digitize the recordings I have. I would like to find a compatible connector then import through my DAW. Any info you have about finding or creating a new output cable is appreciated.

These are amazing pieces of history.

Glenn Stok (author) from Long Island, NY on August 14, 2017:

Wayne Warner - If you want to fix your unit for the purpose of transferring existing wire recordings, I would recommend getting a working unit. Many people are selling units on eBay. Just choose one that's listed as working. Fixing your old unit may not be guaranteed to be successful, but you could try to contact people selling units on eBay for those parts if that's the path you want to take.

Wayne Warner on August 14, 2017:

are you aware of anyone who has parts for Webster Chicago wire recorders? We are trying to find idler drives for 180-1. It belongs to a church archives, and they are anxious to put it in working order to transfer sermons, etc. A few years ago someone told of a person who could restore the rubber parts. Does anyone know about this process and whether it is reliable. Thanks.

Glenn Stok (author) from Long Island, NY on July 31, 2017:

Looty, It sounds like you have some interesting leftover items there. I would recommend being very careful if you want to try plugging that unit in after not bring used for 50 years. The capacitors may explode. I kept mine running by using it at least one a year since childhood. Applying power can actually save the electronics from wearing out. But even doing that, now the capacitors dried up — causing an AC hum. In your case it's probably all dried up by now, sad to say.

Without knowing what items you actually have I can't say what else to do. If you want to try to find other people to contact, take a look at equivalent items being sold on eBay. Try to touch base with those sellers.

Looty on July 31, 2017:

My grand father used to work on wire recorders for GE and the Air Force. My folks still have a bit of some of his old recorders, test recordings, random spools, blueprints, notes, manuals and other items of interest. I have a commercially made version along with what I think was one he built in the the lab, for it has no manufacture marking, TM or other indicators of manufacture. It is still loaded with a spool of wire. I have never played or even turned it on. It is missing its power cable.

Wondering if you could give me some direction on how to test if these items still work, they have not been switched on in over 50 years. Any info or help would be grand. Also if you know of any folks in the Atlanta or Syracuse areas (where we live), that I could reach out to and share my stuff, that would be grand.

Glenn Stok (author) from Long Island, NY on July 15, 2017:

Neil Robar, It's impossible to guess what could be causing a short in your wire recorder that you said blows a fuse when you turn it on. Your best bet would be if you can find someone local who repairs old tube electronics.

Glenn Stok (author) from Long Island, NY on June 11, 2017:

Callie, As I mentioned in this article, my unit recently developed an AC hum, so playback is terrible now. Converting to MP3 wirh quality is no longer possible. I'm glad I converted mine before the unit started failing. You might try asking people who are selling working units on eBay.

Callie on June 11, 2017:

I have acquired 5 reels of a 1950's family gatherings which my father recorded. They would be the highlight of a family reunion this summer. Can you transfer them to a CD or MP3 player. What would be the cost and time frame. Thank you.

Glenn Stok (author) from Long Island, NY on May 26, 2017:

Gary, Look for similar items on eBay and compare to find out what people are getting for it. You can do an advanced search on eBay and select "sold items" to see what already sold rather than what people are just asking for. Many wire recorders on eBay have cases that are in poor condition, so that shouldn't matter so much. Since it's working, you're ahead of the others if you decide to sell it on eBay. Take good pictures from all angles and write a good description. Good luck it it.

Gary on May 26, 2017:

I have a Sears Silvertone Model 7086 Wire recorder with radio and phonograph that was my Grandfather's. Mechanically everyhing works but the cabinet is in just fair condition. I could not find a date anywhere on the unit. Does this have any monetary value?

Glenn Stok (author) from Long Island, NY on April 19, 2017:

Thanks for that very nice comment Bob Smith. I never had luck repairing a broken wire with that square knot method. It gets stuck in the play head and rips the wire again. My conclusion was that when a wire rips, it's a done deal. I do believe the AC hum that started is a dried capacitor. You're right about the need to keep these things. They are a wonderful memory of past electronic successes.

Bob Smith on April 19, 2017:

I just read this article and found it interesting. I recently purchased a wire recorder, and I have done some research. If you ever find that your recording wire has broken, the manual for the wire recorder says to tie the wire in a simple square knot to repair it! Much easier than splicing tape, I think. Also, the cause of your AC hum might be capacitors or maybe a tube going out. You can still get capacitors to re-cap the device if you wish, and you can get NOS tubes to use for it. It is a quite unique device, and I believe as many of them should be kept working as possible. It's a shame to see how many things like this are just thrown out. Thanks, and good luck with your recorder!

Glenn Stok (author) from Long Island, NY on March 16, 2017:

Thanks Jesse. Many of these things are nostalgic for me too. My Webster recently developed an AC hum. Guess it's getting old now! lol.

The Write Life from The United States on March 16, 2017:

Glenn, absolutely incredible article you have written here. I love old audio equipment like this including tape decks and 8 track, really anything related. I also learned some things I did not know. Thank you for sharing!

Glenn Stok (author) from Long Island, NY on October 26, 2015:

Butch - If you don't need a working unit because you just want it for parts, then go for it if it's not expensive. I see many people selling them on eBay for between $50 and $200, depending on the condition. That should give you an idea of the value.

butch on October 26, 2015:

hi-- thx for the interesting info! i just saw one of these in an antiques store and at first thought it was a tape recorder...then looked closer and saw the wire! i had heard of them but never saw one. do you think it has any value as-is? this one had the cover which had 6 (?) more small reels attached to the inside as well as a flap behind which held the mike. the price was fairly cheap. i make art 'robots' and was thinking of cannibalizing the machine for parts but dont wanna do that if it destroys a collectable piece! thank you, butch

Glenn Stok (author) from Long Island, NY on February 27, 2015:

colorfulone - I don't know anyone else who knew of it either, Susie. I always have fun showing it to my friends. Magnetic tape was so much easier to use. Wire tended to break too easily.

Susie Lehto from Minnesota on February 27, 2015:

I do not believe I had ever heard of a wire recorder before this, Glenn.

Its news to me and interesting. When I was a child, I got a magnetic tape recorder as a gift. Kind of wish I still had that in good shape.

Gaylord Ewing on November 09, 2012:

I've enjoyed your write-up on the Webster-Chicago 180 wire recorder.

I have 4-wire recorders in my collection of antique/vintage recorders.

And yes I even have a few disc-recorders. My very first recorder was a Webster-Chicago Model 80 wire recorder. Certainly had a lot of fun with that recorder. I actually wore-out the recorder-head because of using it so much. I now have a Stereo-Digital Recorder,that I use to record pipe-organ recitals/concerts with. Best regards, Gaylord Ewing

Wendy Iturrizaga from France on February 04, 2011:

Now I know what a wire recorder is! Thanks for an informative hub, how wonderful having kept the one that belonged to your father and being able to hear all those fantastic childhood memories... I am jealous!
