3D Printers in Medicine: Uses and Potential Applications

Linda Crampton taught science and information technology to high school students for many years. She enjoys learning about new technology.

Researchers have made ears with the help of a 3D printer.

Researchers have made ears with the help of a 3D printer.

Transforming Medicine With 3D Printers

3D printing is an exciting aspect of technology that has many useful applications. One fascinating and potentially very important application of 3D printers is the creation of items that can be used in medicine. These items include implantable medical devices, artificial body parts or prosthetics, and customized medical instruments.

The printed items also include patches of living human tissue and mini-organs, or organoids. The latter structures may help researchers learn more about how an organ works and may be useful for testing the effects of potential medications. In the future, implantable organs may be printed.

3D printers have the ability to print solid, three-dimensional objects based on a digital model stored in a computer's memory. A common printing medium is a liquid plastic that solidifies after printing, but other media are available. These include powdered metals, artificial resins, and "inks" containing living cells.

In this article, I describe a selection of medically relevant creations from recent history up to today. The ability of printers to produce items that are compatible with the human body is improving rapidly. Some of the items are already used in medicine while others are still in the experimental stage. Many researchers are involved in the investigation. 3D printing has the tantalizing potential to transform medical treatment.

How Does a 3D Printer Work?

The first step in the creation of a three-dimensional object by a printer is to design the object. This is done in a CAD (Computer-Aided Design) program.

Once the design is finished, another program creates instructions for producing the object in a series of layers. This second program is sometimes known as a slicing program or as slicer software, since it converts the CAD code for the entire object into code for a series of slices or horizontal layers. The layers may number in the hundreds or even in the thousands.

The printer creates the object by depositing layers of material according to the slicer program's instructions, starting at the bottom of the object and working upwards. Successive layers are fused together. The process is referred to as additive manufacturing.

Plastic filament is often used as a medium for 3D printing, especially in consumer-oriented printers. The printer melts the filament and then extrudes the hot liquid through a nozzle. The nozzle moves in all dimensions as it releases the liquid plastic in order to create an object.

The movement of the nozzle and the amount of plastic that is extruded is controlled by the slicer program. The hot plastic solidifies almost immediately after it's released from the nozzle. Other types of printing media are available for special purposes.

1. Making an Ear

In 2013, scientists at Cornell University in the United States announced that they had been able to make an ear pinna with the aid of 3D printing. The steps followed by the Cornell scientists were as follows.

  • A model of an ear was created in a CAD program. The researchers used photographs of real ears as the basis for this model.
  • The ear model was printed by a 3D printer, using plastic to create a mold with the shape of the ear.
  • A hydrogel containing a protein called collagen was placed inside the mold. A hydrogel is a gel that contains water.
  • Chondrocytes (cells that produce cartilage) were obtained from a cow's ear and added to the collagen.
  • The collagen ear was placed in a nutrient solution in a lab dish. While the ear was in the solution, some of the chondrocytes replaced the collagen.
  • The ear was then implanted in the back of a rat under its skin.
  • After three months, the collagen in the ear had been completely replaced with cartilage and the ear had maintained its shape and distinction from the surrounding rat cells.
Scroll to Continue

The Difference Between a Mold and a Scaffold

In the ear creation process described above, the plastic ear was an inert mold. Its sole function was to provide the correct shape for the ear. The collagen ear that formed inside the mold acted as a scaffold for the chondrocytes.

In tissue engineering, a scaffold is a biocompatible material with a specific shape on and in which cells grow. The scaffold not only has the correct shape but also has properties that support the life of the cells.

Since the original ear creation process was performed, Cornell researchers have found a way to print a collagen scaffold with the correct shape needed to make an ear, eliminating the requirement for a plastic mold.

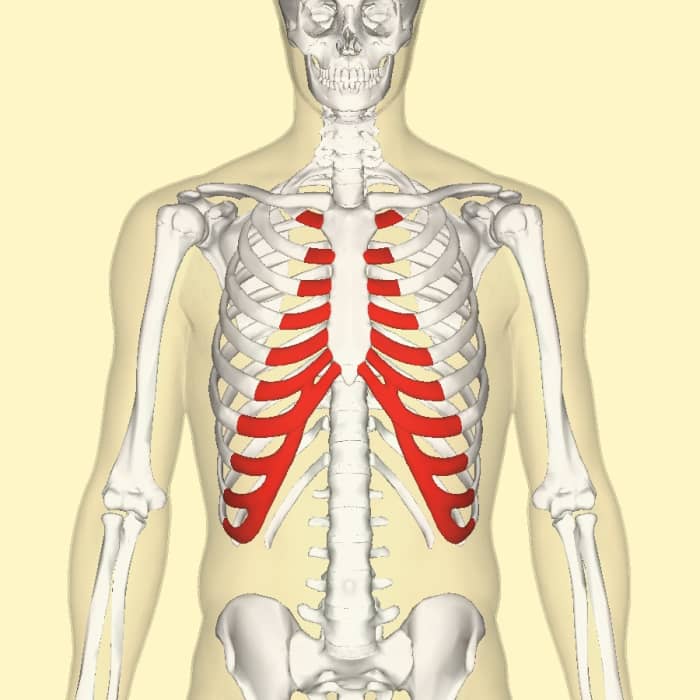

Rib cartilage (shown in red) is sometimes used to make a replacement ear.

Rib cartilage (shown in red) is sometimes used to make a replacement ear.

Potential Benefits of Printed Ears

Ears made with the aid of printers could be useful for people who have lost their own ears due to injury or disease. They could also help people who were born without ears or have ones that haven't developed properly.

At the moment, replacement ears are sometimes made from cartilage in a patient's rib. Obtaining the cartilage may be an unpleasant experience for the patient and can damage the rib. In addition, the resulting ear may not look very natural.

Ears are also made from artificial material, but once again the result may not be completely satisfactory. Printed ears have the potential to look more like natural ears and to work more efficiently.

An artificial mandible, or lower jaw, has been created by a 3D printer.

An artificial mandible, or lower jaw, has been created by a 3D printer.

2. Printing a Lower Jaw

In February 2012, Dutch scientists reported that they had created an artificial lower jaw with a 3D printer and implanted it into the face of an 83-year-old woman. The jaw was made from layers of titanium metal powder fused by heat and was covered by a bioceramic coating. Bioceramic materials are compatible with human tissue.

The woman received the artificial jaw because she had a chronic bone infection in her own lower jaw. Doctors felt that traditional facial reconstruction surgery was too risky for the woman because of her age.

The jaw had joints so that it could be moved, as well as cavities for muscle attachment and grooves for blood vessels and nerves. The woman was able to say a few words as soon as she woke up from the anesthetic. The next day she was able to swallow. She went home after four days. False teeth were scheduled to be implanted into the jaw at a later date.

3. Making Prosthetics and Implantable Items

The metal jaw described above is a type of prosthetic, or artificial body part. The production of prosthetics is an area in which 3D printers are becoming important. Some hospitals now have their own printers or are working in cooperation with a medical supply company that has a printer.

The creation of a prosthetic by 3D printing is often a quicker and cheaper process than the creation by conventional manufacturing methods. In addition, it's easier to create a customized fit for a patient when a device is specifically designed and printed for the person. Hospital scans can be used to create tailored devices.

Replacement limbs are often 3D printed today, at least in some parts of the world. Printed arms and hands are often considerably cheaper than those produced by conventional methods. One 3D printing company is working with Walt Disney to create colourful and fun prosthetic hands for children. In addition to creating a cheaper product that is more affordable, the initiative aims "to help kids view their prosthetics as a source of excitement rather than embarrassment or limitation".

More Examples

  • In late 2015, printed vertebrae were successfully placed in a patient. Patients have also received a printed sternum and a ribcage.
  • 3D printing is used to produce improved dental implants.
  • Replacement hip joints are often printed.
  • Catheters that fit the specific size and shape of a passage in a patient's body could soon be common.
  • 3D printing is often involved in the manufacture of hearing aids.

Bioprinting With Living Cells: A Possible Future

4. Organ and Tissue Replacement

The replacement of damaged organs with organs made from 3D printers would be a wonderful revolution in medicine. At the moment, there aren't enough donated organs available for everyone who needs them.

The plan is to take cells from a patient's own body in order to print an organ that they need. This process should prevent organ rejection. The cells would likely be stem cells, which are unspecialized cells that are capable of producing other cell types when they are stimulated correctly. The different cell types would be deposited by the printer in the correct order.

Researchers are discovering that at least some kinds of human cells have an amazing ability to self-organize when they are deposited, which would be very helpful in the process of creating an organ.

A special type of 3D printer known as a bioprinter is used to make living tissue. In a common method of making the tissue, a hydrogel is printed from one printer head to form a scaffold. Tiny liquid droplets, each containing many thousands of cells, are printed onto the scaffold from another printer head. The droplets soon join and the cells become attached to each other.

When the desired structure has formed, the hydrogel scaffold is removed. It may be peeled away or it may be washed away if it's water-soluble. Biodegradable scaffolds may also be used. These gradually break down inside a living body.

Some Bioprinting Successes

Non-living implants and prosthetics created by 3D printers are already used in humans. The use of implants containing living cells requires more research, which is being performed. Entire organs can't yet be made by 3D printing, but sections of organs can.

Many different structures have been printed, including patches of the heart muscle that are able to beat, skin patches, segments of blood vessels, and knee cartilage. These haven't yet been implanted into humans. In 2017, scientists presented a prototype of a printer that can create human skin for implantation, however, and in 2018 other scientists printed corneas in a process that may one day be used to repair damage in eyes.

Some hopeful discoveries were reported in 2016. A team of scientists implanted three types of bioprinted structures under the skin of mice. These included a baby-sized human ear pinna, a piece of muscle, and a section of human jaw bone.

Blood vessels from the surroundings extended into all of these structures while they were in the bodies of the mice. This was an exciting development since a blood supply is necessary in order to keep tissues alive. The blood carries nutrients to living tissues and takes away their wastes.

It was also exciting to note that the implanted structures were able to stay alive until the blood vessels had developed. This feat was accomplished by the existence of tiny pores in the structures that allowed nutrients to enter them.

Printing Parts of the Heart

Benefits of Mini-Organs or Organoids

Scientists have been able to create mini-organs by 3D printing (and by other methods). "Mini organs" are miniature versions of organs, sections of organs, or patches of tissue from specific organs. They are referred to by various names in addition to the term mini-organ, including organoid.

The printed creations may not contain every type of structure found in the full-size organ, but they are good approximations. Research indicates that they could have important uses, even though they aren't implantable.

Mini organs are not always produced from cells supplied by a random donor. Instead, they are often made from the cells of a person who has a disease. Researchers can check the effects of medications on the mini-organ. If a drug is found to be helpful and not harmful, it may be given to the patient.

There are several advantages to the process described above. One is that a medication that is likely to be beneficial for the patient's specific version of a disease and for their specific genome can be used, which increases the likelihood of a successful treatment. Another is that doctors may be able to obtain an unusual or normally expensive drug for a patient if they can demonstrate that the drug is likely to be effective. In addition, testing drugs on mini-organs may reduce the need for lab animals.

A Structure That Mimics the Lung

In 2019, scientists at Rice University and the University of Washington demonstrated their creation of a mini-organ that mimics a human lung in action. The mini-lung is made of hydrogel. It contains a small lung-like structure that is filled with air at regular intervals. A network of vessels that are filled with blood surrounds the structure.

When stimulated, the simulated lung and its vessels expand and contract rhythmically without breaking. The video shows how the structure works. Though the organoid is not full-size and doesn't mimic all of the tissues in a human lung, its ability to move like a lung is a very important development.

Scaffolds for Brain Organoids

Organoids are proving to be very useful and offer a lot of hope for future medical treatments. Human cells seem to have an impressive ability to self-organize. Nevertheless, organoids need some help during their creation. In 2021, researchers 3D-printed flat scaffolds that allow brain organoids to develop.

Though it might seem strange that flat scaffolds were used, the report referenced below says that they enabled the researchers to create significantly larger brains than previous efforts and that after twenty days "self-generated folding" was observed in the organoid.

The flat shape also enabled better diffusion of oxygen and nutrients into the brain cells and prevented the formation of a necrotic core seen in some other brain organoids. Necrosis is the death of cells.

Creating a Cornea

Scientists at Newcastle University in the UK have created 3D-printed corneas. The cornea is the transparent, outermost covering of our eyes. Serious damage to this covering can cause blindness. A corneal transplant often solves the problem, but there aren’t enough corneas available to help everyone who needs them.

The scientists obtained stem cells from a healthy human cornea. The cells were then placed in a gel made of alginate and collagen. The gel protected the cells as they travelled through the single nozzle of the printer. Less than ten minutes were needed to print the gel and the cells in the correct shape.

The shape was obtained by scanning a person's eye. (In a medical situation, the patient's eye would be scanned.) Once the gel and cell mixture was printed, the stem cells produced a complete cornea.

The corneas made by the printing process have not yet been implanted into human eyes. It will probably be some time before they are. They have the potential to help many people, however.

Some Challenges for Bioprinting Organs

Creating an organ that is suitable for implantation is a difficult task. An organ is a complex structure containing different cell types and tissues arranged in a specific pattern. In addition, as organs develop during embryonic development, they receive chemical signals that enable their fine structure and intricate behaviour to develop properly. These signals are lacking when we try to create an organ artificially.

Some scientists think that at first—and perhaps for some time to come—we will print implantable structures that can perform a single function of an organ instead of all of its functions. These simpler structures may be very useful if they compensate for a serious defect in the body.

Though it's likely to be years before bioprinted organs are available for implants, we may well see new benefits of the technology before then. The pace of research seems to be increasing.

Organoids aren't created for implantation (at least at the moment), but they might prove to be very useful in medicine. They are attracting a lot of interest. Many researchers seem to be exploring their potential features and uses. 3D printing could be a big help in their creation. The future of 3D printing in relation to medicine should be exciting.


  • An artificial ear created by a 3D printer and living cartilage cells from the Smithsonian Magazine.
  • Transplant jaw made by a 3D printer from the BBC (British Broadcasting Corporation)
  • Colourful 3D printed hands from the American Society of Mechanical Engineers
  • Bioprinter creates bespoke lab-grown body parts for transplant from The Guardian
  • First 3D-printed human cornea from the EurekAlert news service
  • 3D printer makes tiniest human liver ever from New Scientist
  • Mini 3D printed organs mimic beating heart and liver from New Scientist
  • An organ that mimics the lungs from Popular Mechanics
  • New 3D printer makes life-sized ear, muscle, and bone tissue from living cells from Science Alert
  • 3-D bioprinter to print human skin from the new service
  • Scaffolds for brain organoids from Genetic Engineering & Biotechnology News
