Meters of all kinds have become integral parts of our economy and the Western lifestyle - in scientific testing, machine alerts and maintenance, the automation of manufacturing, and the way we bill for services. There are electrical meters, chemical meters, atmospheric sensors, temperature gauges, meters of liquids, and many more.

Water meters and their relatives and derivatives are also used in all sectors of society. There are four classes of meters measuring water in its different forms. These are water meters, moisture meters, ice meters, and hygrometers (humidity in the air). This article covers water meters - what they measure and how and where they are used.

Water flow meters have digital dials and clock dials, as well as a leak indicator (red triangle).
Water flow meters have digital dials and clock dials, as well as a leak indicator (red triangle). | Source

What Water Meters Measure

Water meters measure the characteristics of liquid water: Its speed of flow, the quantity used, its pH balance, its quality, how well it conducts electricity. Many meters are used to calculate monthly water bills, others to measure just the right amount of liquid to add to a product or process. Still others are used to evaluate remedial actions that need to be taken to improve the water, and some to make sure that actions have been effective. "Multiparameter meters" measure more than one thing at once.

How Meters are Read

Meters are read in different ways, depending on the meter:

  • Via a clock-like face
  • One or several digital readings
  • Electronic communication with a local computer
  • Remotely from pulses sent from a meter to a reader driving by

Some are read by people, some by machines. The video below shows how a typical water flow meter is read. The information below it shows different types of water meters and what they do.

Water Flow Meter

This kind of meter is how water suppliers measure the amount of water their customers use during the month. The results added together help them monitor their water supply - making sure they have enough to supply everyone - and also tells them how much usage to bill you for each month. Your money helps pay their costs (they have to buy the water they sell to you) and helps keep their extensive distribution system functioning well.

Water suppliers are not the only ones using flow meters. Building owners use this type of meter in many different ways:

  • To determine the existence of a leak - if no water is on, but the meter still records, then there's a leak somewhere.
  • To measure the amount of water that any wells on the property produce.
  • To submeter separate units in a homeowners association or apartment building, so residents can pay for their own water use.
  • To separate water used inside a building from that used for landscaping. "Dedicated irrigation meters" make it easy to monitor irrigation water used, and to ensure that the water supplier is only charging sewage on water used inside, not outside.

Manufacturers and businesses also use flow meters. Their uses include:

  • Automatically measuring fluids used in the manufacturing process.
  • Testing the quantity of fluid circulating in HVAC systems.
  • In gas pumps, calculating the amount and cost of fuel pumped.
  • Injecting the right amount of water when making concrete.
  • Gauging water used in firefighting.

Water Velocity or Current Meters

There are meters made to measure both flow and speed (velocity) of water or you can get a special probe that just measures velocity. Hydrologists use this type of meter to measure the speed of a stream or river. Knowing the speed and the width and depth of a stream, they can then estimate volume of flow.

Utilities use this kind of meter to make sure their pipes stay open. If the flow is sluggish, that means there's a block somewhere. They will use a probe to narrow down the location of the block, before going in to clean out the pipe.

The food and beverage industries use this kind of meter to gauge the amount of water to add to their base flavoring agents or chemicals, or to the cooking process for canned vegetables and soups.

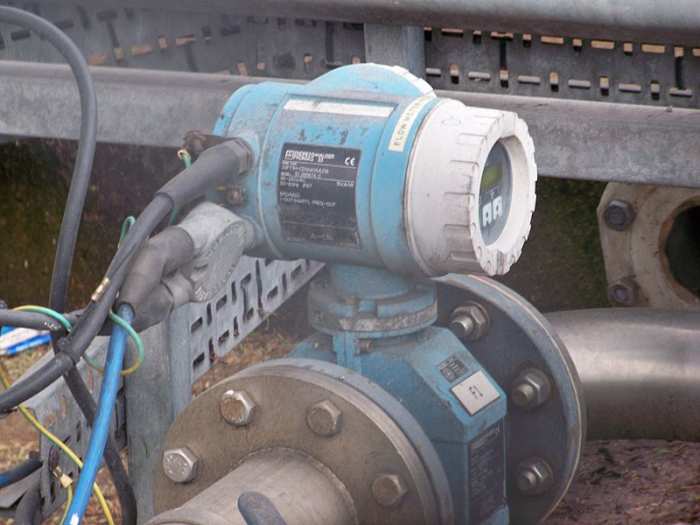

This old velocity meter is used in a brewery in West Yorkshire, England. Meters such as this are used to gauge the exact amount of liquid added to grains for brewing, and also the water/chemical balance for cleaning out the tanks.
This old velocity meter is used in a brewery in West Yorkshire, England. Meters such as this are used to gauge the exact amount of liquid added to grains for brewing, and also the water/chemical balance for cleaning out the tanks. | Source

Water pH Meter

The pH meter was first devised around 1936 to measure the pH in lemon juice. Since then it has evolved to measure the relative acidity of many different liquids, including water. It can measure semi-solids too, with a special probe.

This is one of the meter types used with closed-loop HVAC systems to make sure that water recyling through the pipes is more alkaline than acid. If the water gets too acid, it will eat holes in the pipes.

This simple pH meter measures the acidity of the water in this tank.
This simple pH meter measures the acidity of the water in this tank. | Source

Water Temperature Gauge

This kind of meter measures the heat content in water. Its most widely known use is in vehicles, where the gauge lets a driver know if there are problems with the radiator heating up. As most drivers are aware, a too hot radiator will crack, losing water and coolant, and resulting in an engine breakdown.

Thermometers are measurers of heat also ("thermo" means heat), and the term is often used in lieu of "water temperature gauge." Bi-metallic stem thermometers are used to measure the temperature of steamed milk, preventing the proliferation of bacteria. Thermistors are used in refrigerators and water heaters. (These are sensors attached to long, insulated wires that insert into narrow pipes and send readings back to a gauge.) Thermometers are also used in the production of candy.

This a metered radiator cap from a Car-Nation automobile in 1913.
This a metered radiator cap from a Car-Nation automobile in 1913. | Source

TDS and Conductivity Meters

These meters are slightly different from each other, but both measure total dissolved solids in a water sample by seeing how well the solution conducts electricity. Here are four of its main uses:

  • To measure water quality in streams, rivers, and lakes, which is how water contamination is discovered from industrial dumping and agricultural or urban runoff.
  • In HVAC systems to make sure the liquid flowing through pipes is not too saturated with chemicals used to prevent scale buildup. If it is, an electronic trigger is sent that opens a valve to add more water.
  • In utilities to test their water purification output, before distributing purified water to customers. Also used in other industries that purify water.
  • In hydroponics, aquaculture, aquariums, and outdoor ponds to test the amount of nutrients or impurities in the water used to grow plants or fish.

TDS meters are used to measure nutrients and wastes in ponds like this, to make sure they're clean enough for healthy fish. The meter can be wired to an electronic valve that automatically adds fresh water.
TDS meters are used to measure nutrients and wastes in ponds like this, to make sure they're clean enough for healthy fish. The meter can be wired to an electronic valve that automatically adds fresh water. | Source

Salinometer

A salinometer is similar to a TDS meter, but it only measures the salt content of a liquid. This type of meter is used aboard steamships and in desalination plants to measure salt content (or the lack, thereof). Steamships need pure distilled water to run their water-tube boilers where salt contamination would cause tube blockage and breakdown of the engine. Desalination plants measure salt content after conversion of seawater into potable water to make sure it's drinkable.

Water-tube boiler used in steamships.
Water-tube boiler used in steamships. | Source

Where to Find Water Meters

Watermeters.com claims to be the first online distributor of water meters. Their landing page shows a number of different types of meters and the most common uses for each.

Amazon.com has many different kinds of small water meters and gauges. Many of the specialty meters listed there, like conductivity meters, you can also get online at specialty stores. For industrial meters, stores like Siemens are good sources.

Hardware stores and plumbing stores are a good physical source for meters - Lowes, Home Depot, Ace Hardware among them.

Utilities supply water meters for your home or office. They often insist on using their own, so check with them first if you're looking for a good flow meter.
